Nyquist/Levinson Rev. 5 PCB Kit - 60%/40% Split Ortholinear Keyboard

$79.99 $79.99 Sale Save

90-Day Return Policy

2-Year Warranty

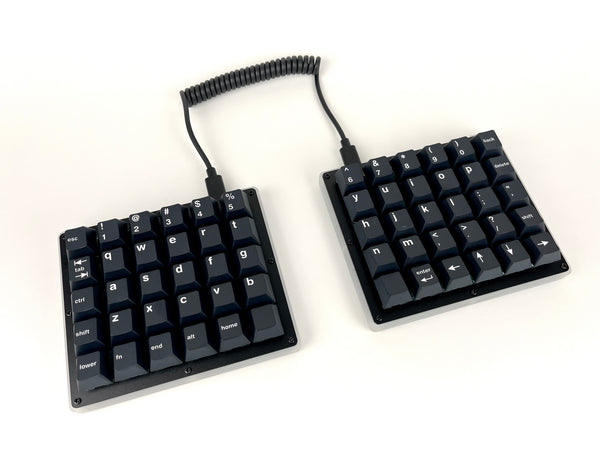

The Nyquist is a 60% split ortholinear keyboard, that can also be converted easily to a 40% split ortholinear by breaking off the bottom row (by hand). Now featuring hotswap sockets, so just pop in your switches, and you are good to go!

Improvements with Rev. 5 PCBs: Rev. 5 adds support for 2u thumb keys when 4-row layout is used

  • MX Hotswap sockets

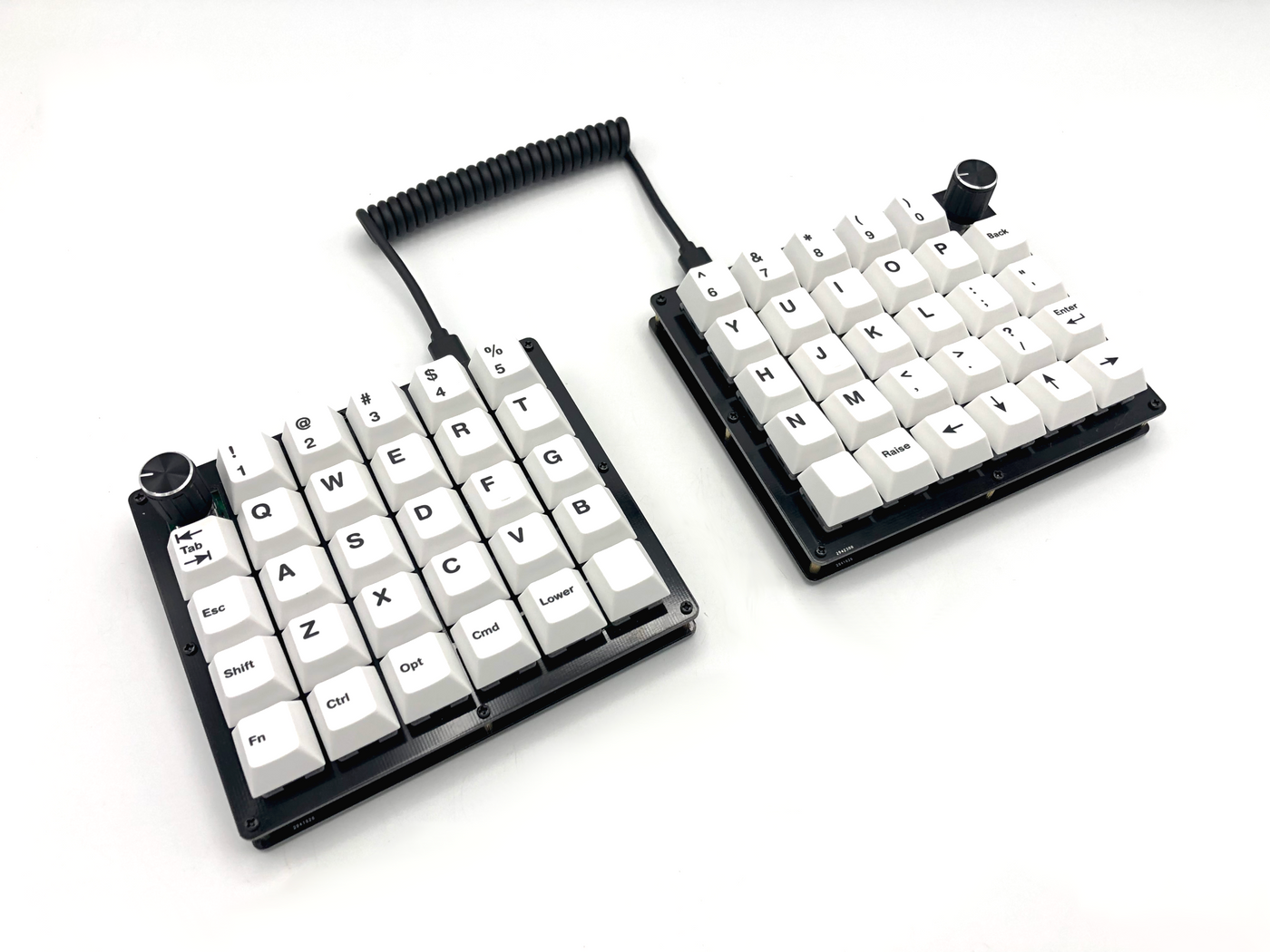

  • Option for rotary encoders at top-left and top-right corners (non-hotswappable)
  • Bottom row can optionally be broken off to convert the board into a Levinson layout (4x12 split)
  • 2u thumb key option for 4-row and 5-row mode
  • Per-key RGB LEDs and underglow LEDs pre-installed
  • USB-C port
  • Compatible with MX-style switches only
  • QMK compatible, pre-flashed with VIA support for easy remapping of keys
  • The right half PCB has an optional 4-pin JST port add-on that can be used to reflash the PCB if you decide to break off the main USB-C port (for compatibility with SP50 case). Use JST-SH cable with Micro-USB breakout board or USB-C breakout board if doing this.
  • Comes with left half PCB and right half PCB
  • RP2040 MCU integrated on-board
  • Per-key RGB LEDs for each switch
  • 8 RGB underglow LEDs on each half

The default keymapping that the board is pre-programmed with can be found here: Default Keymaps
