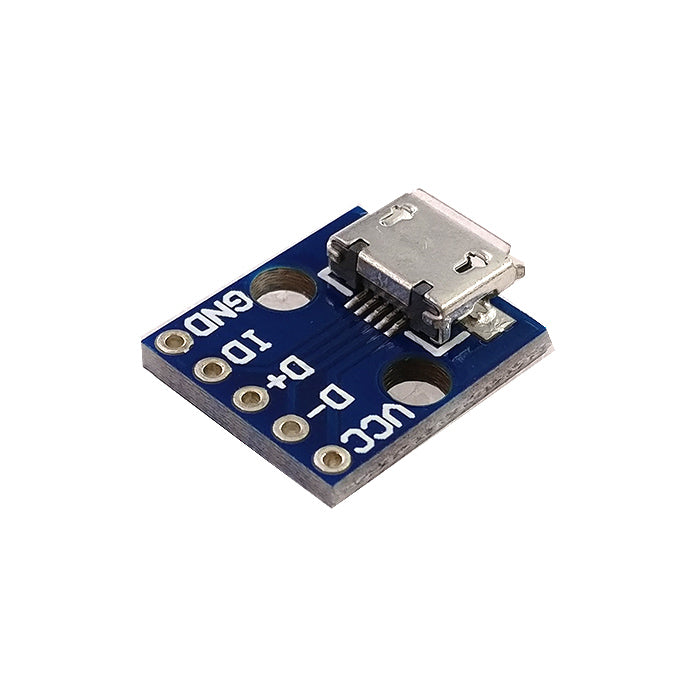

Micro-USB Breakout Board
$0.99Simple breakout board for Micro-USB. Breaks out VBUS (5V), GND, D-, D+, and ID.
Pitch spacing between the pins is 0.1” (2.54mm).
Simple breakout board for Micro-USB. Breaks out VBUS (5V), GND, D-, D+, and ID.
Pitch spacing between the pins is 0.1” (2.54mm).
