Convolution - 65XT Keyboard Kit

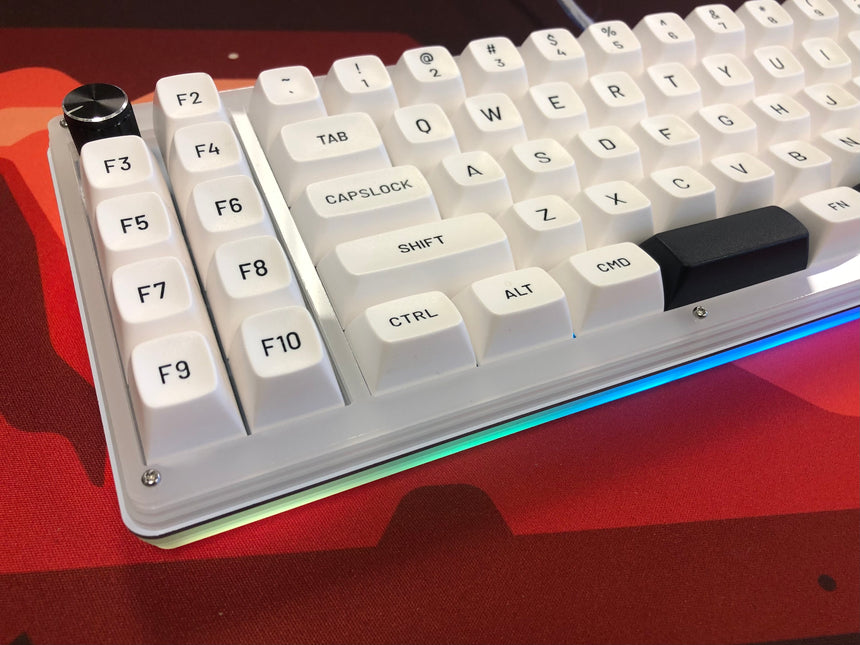

The Convolution is a 65XT staggered keyboard, with a 2x5 macro section to the left. Stacked acrylic case with feet to bring it to a 7-degree tilt.

Features

RP2040 Microcontroller
16 RGB underglow LEDs
Option for rotary encoders at the top left and top right corners
ANSI and ISO support
Layouts supported: Convolution KLE

Spacebar options: 6.25u, 7u, or split

USB-C port

JST port can be soldered on for use with a daughterboard if you decide to break off the USB-C port

Compatible with MX-style switches only
QMK compatible, pre-flashed with VIA support
Stacked acrylic case with 7-degree tilt

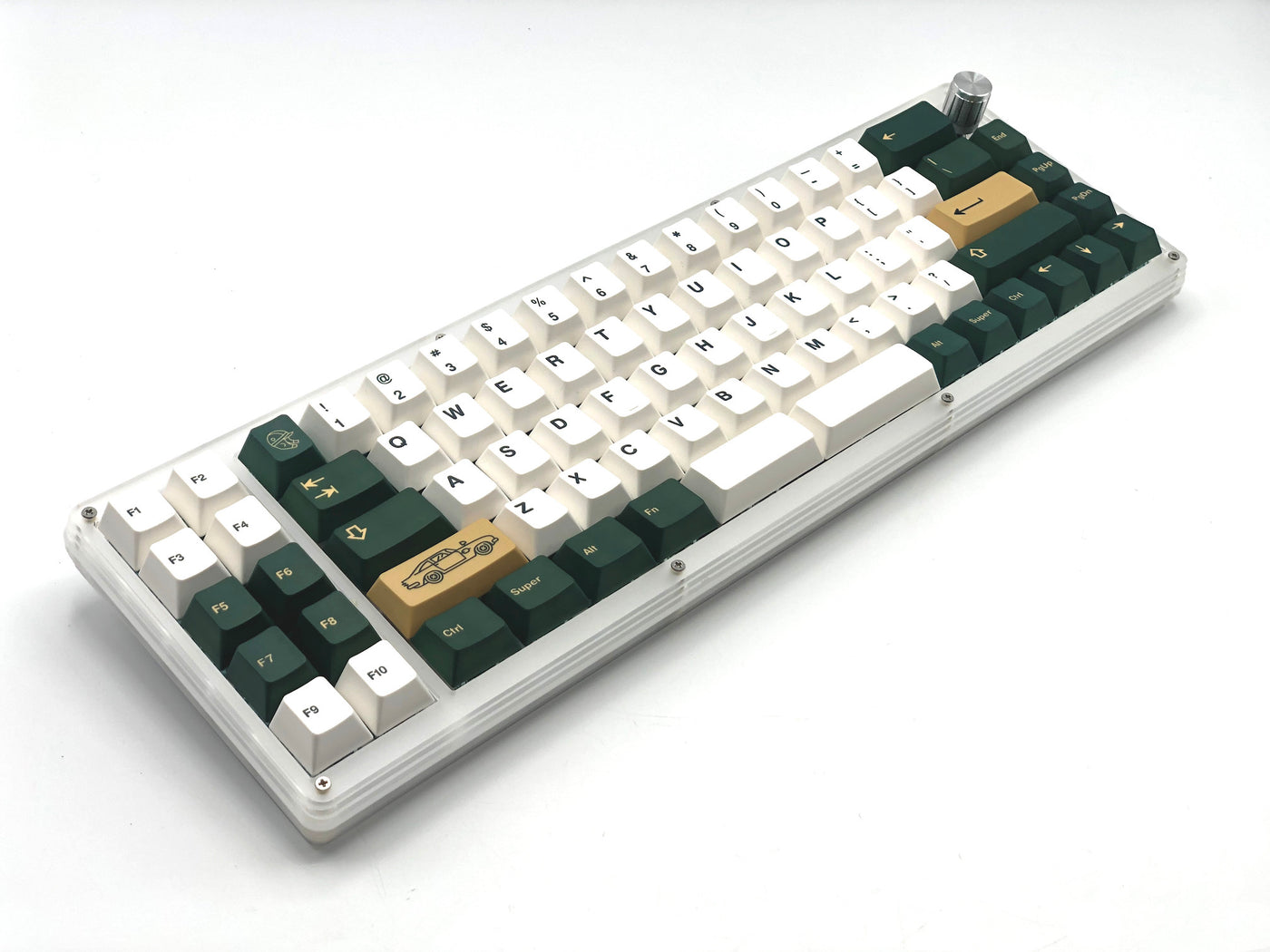

Frosted case

Frosted when viewed from the top, Clear when viewed from the sides
White POM switch plate

Black case

Black POM switch plate

SKUF feet included

Keycaps not included

Items needed for Build

MX-compatible switches - About 80 depending on layout
PCB-mount MX stabilizers - Most configurations will use 5 stabilizers

6.25u & 7u are not sold here, so you will need to buy those elsewhere if using a full-length spacebar

USB-C cable
Rotary Encoder and knobs
Keycaps

Build Guide

Convolution Build Guide

Case Design Files

Files are to be made available on GitHub when ready.

Default Keymapping:

The default keymapping that the board is pre-programmed with can be found here: Default Keymaps
