Iris CE PCBs
Iris CE PCBs
Iris CE PCBs
Iris CE PCBs
Iris CE PCBs
Iris CE PCBs

Iris CE PCBs

$89.99 $89.99 Sale • Save

90-Day Return Policy

2-Year Warranty

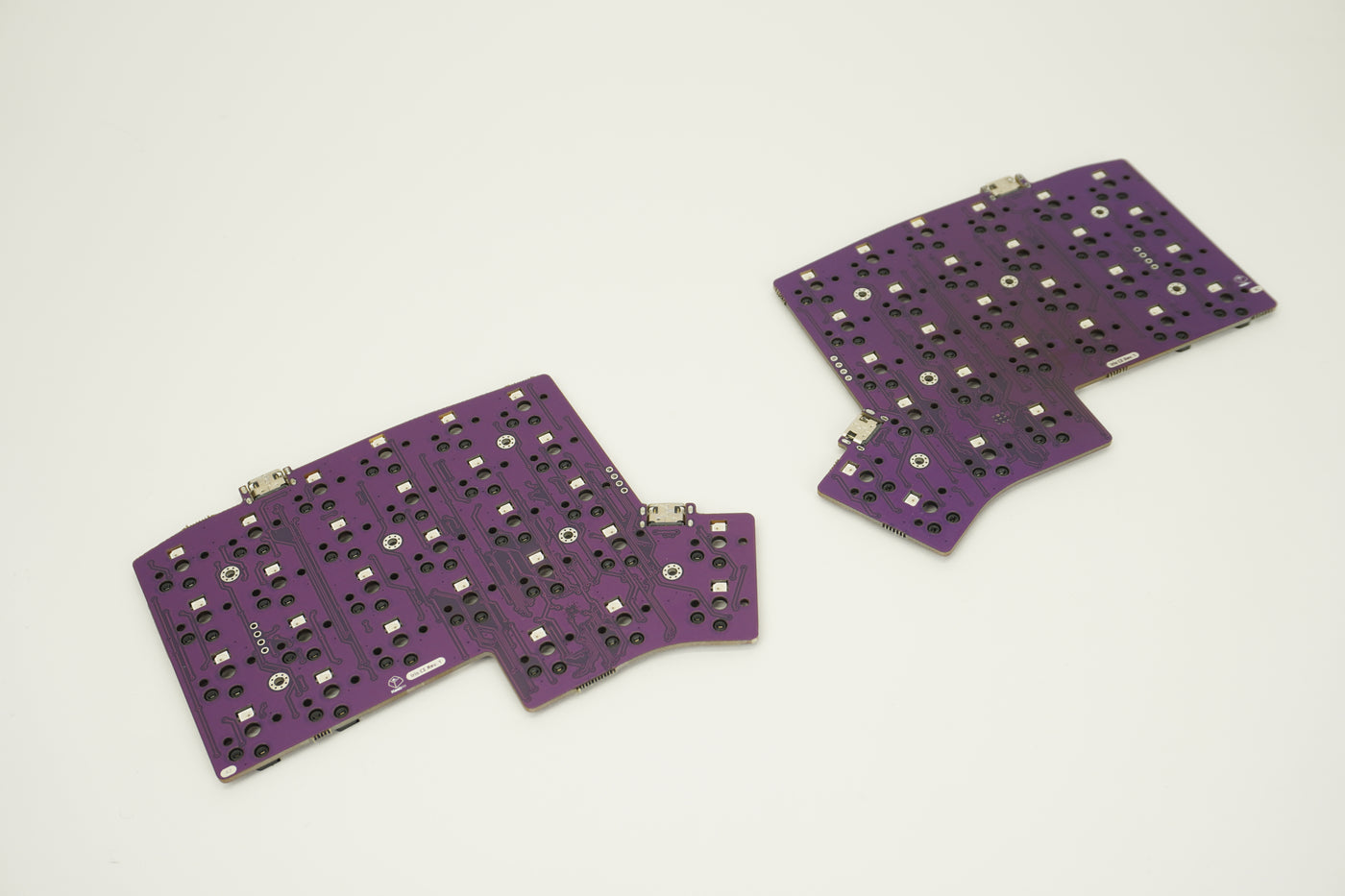

PCBs for the Iris CE (Compact Edition).

For the full kit or keyboard see:

  • Pre-flashed with QMK Firmware and VIA configurator support
  • With VIA configurator, you can reprogram the board without needing to know how to setup QMK and/or QMK Toolbox
  • Demo video of VIA
  • Layout: Each half of the board is a 4x6 matrix with the same vertical stagger as the Ergodox and with 4 thumb keys.
  • On-board RP2040 Microcontroller with 16Mbit flash memory
  • Switch support: Kailh Choc Low-Profile V1 switch support only
  • Key spacing: 17mm vertical, 18mm horizontal (MCC/MBK spacing)
  • USB-C ports for both connection to computer and in between halves
  • Kailh Choc Hotswap sockets pre-installed
  • 6 RGB underglow LEDs per half (12 total)
  • Per-key RGB LEDs
  • Left Half PCB
  • Right Half PCB
  • This keyboard uses the popular open-source QMK Firmware with VIA enabled out of the box to allow you to remap all the keys just the way you want them.
  • Plug your keyboard in, open up the VIA app, and easily change what each key does to get the most out of your keyboard with your customizations!
  • More info on what you can do here: VIA Usage Guide
