$29.99 Sale • Save
Kit Type Rev. 2 PCB Kit

90-Day Return Policy

2-Year Warranty

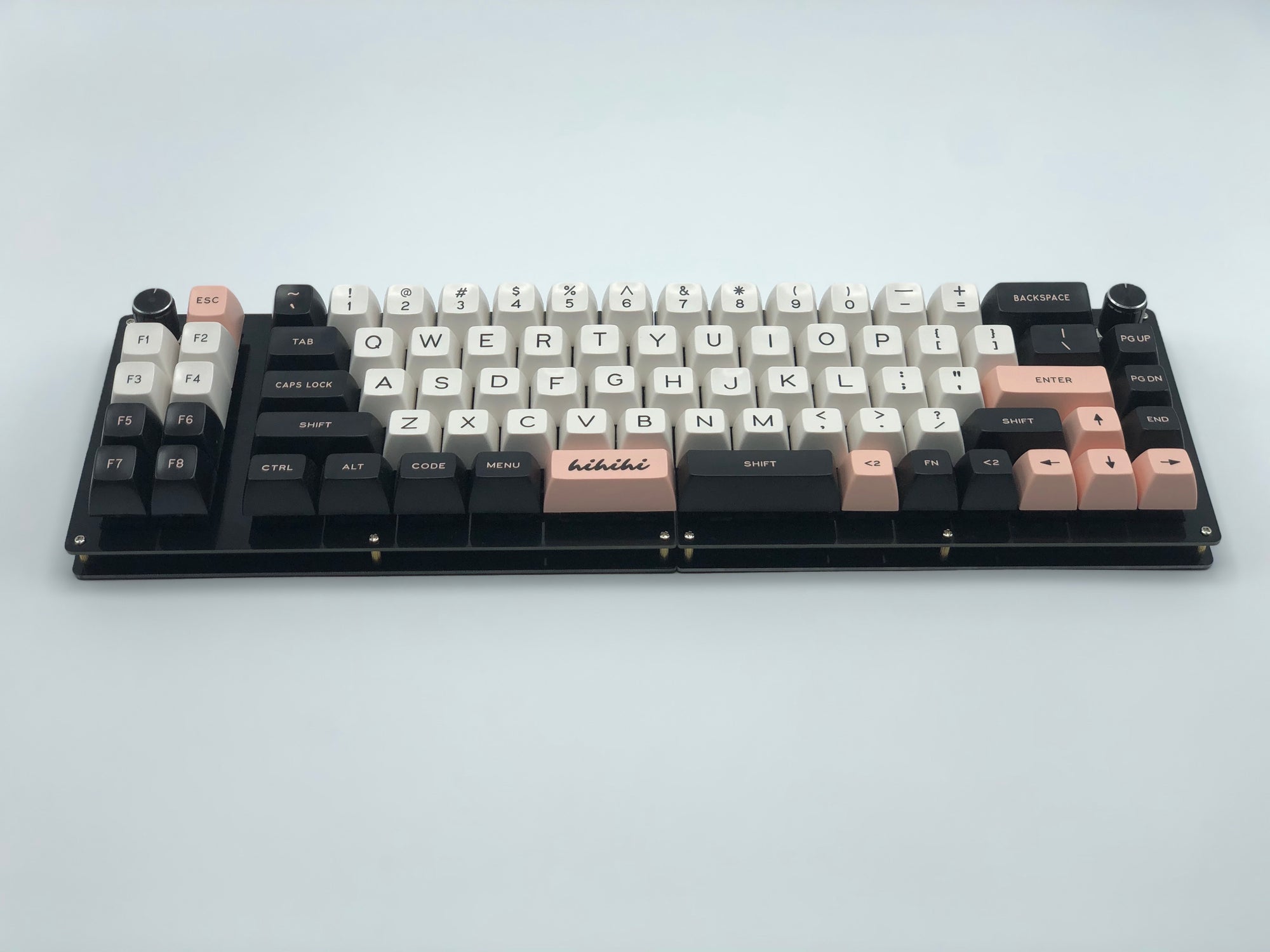

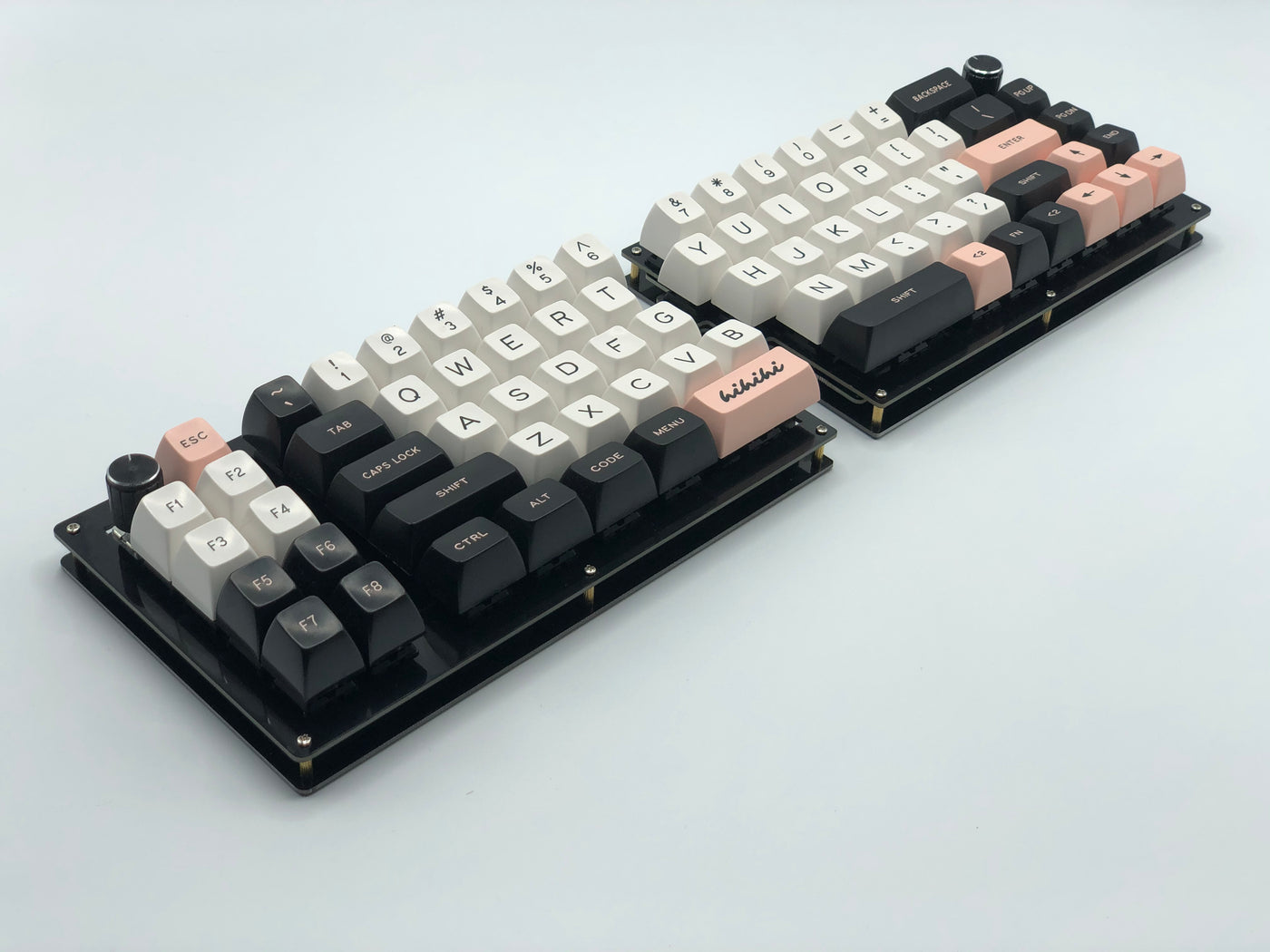

A 60%/65% split staggered keyboard, with 2x5 macro section option for the left half. Pronounced as keew-fren-see.

New! Pre-built Quefrency Keyboards now available, click here!

PCB Kits and Plate Kits are sold separately, so unless you are having your own case/plates made, you will need both types of kits.



  • Option for rotary encoders at top left and top right corners
  • ANSI/ISO support
  • Options for split backspace and split right shift

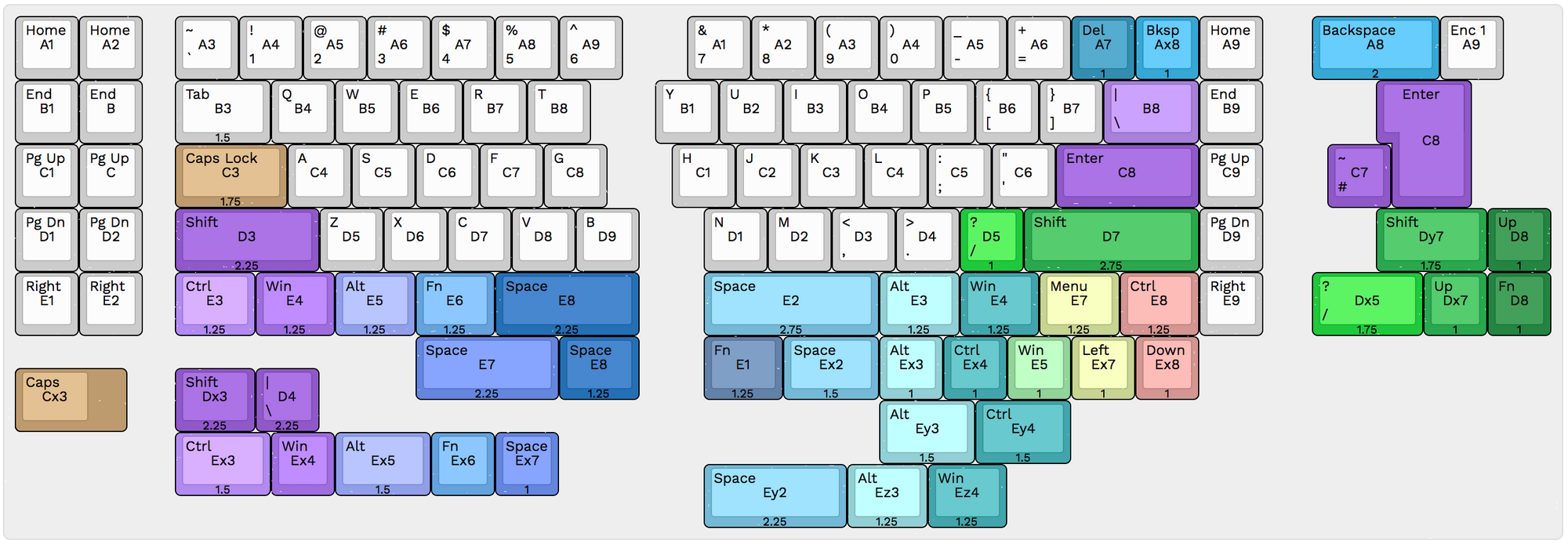

  • Layouts supported: KLE link
  • Macro section on left half and right column on right half can optionally be broken off
  • In-switch LED support (single-color 2-Pin LEDs)
  • Separately controlled Caps Lock LED
  • USB-C port
  • Compatible with MX-style switches only
  • QMK compatible, pre-flashed with VIA support
  • Connection between halves: TRRS for Rev. 2

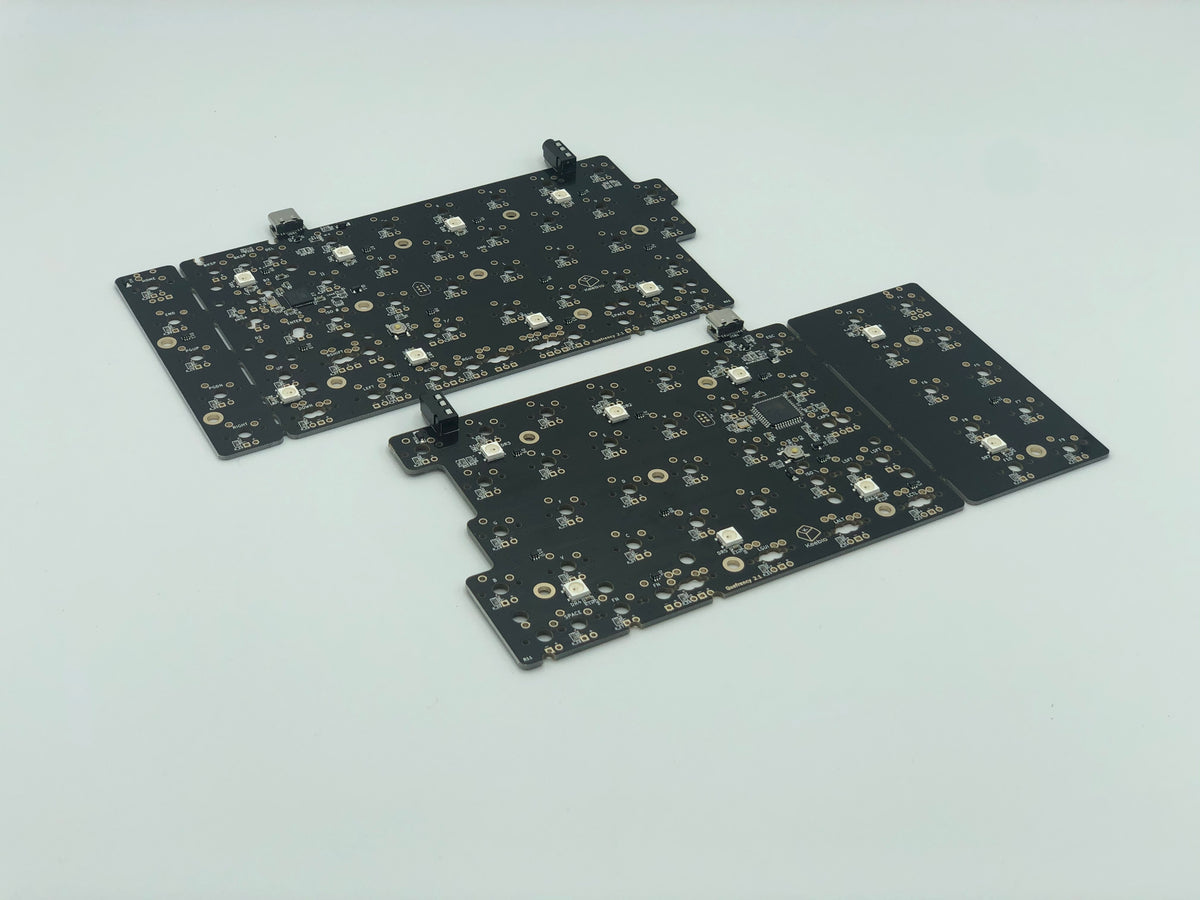

  • Left PCB and Right PCB
  • One size fits all - Left PCB can have macro section broken off, and the Right PCB can have the right column broken off for 60% mode instead of 65%

Quefrency Rev. 2 Build Guide

Quefrency Rev. 2 Build Video

Needed but not included:

Files available on GitHub

The default keymap layout can be changed in QMK Configurator.
