Quefrency Keyboard - Pre-Built

No time for soldering? No problem, we've got pre-built Quefrency keyboards for sale now!

Notes

Tested and pre-flashed with default layout and VIA support
Ships within 3-5 business days usually
Your choice between Rev. 2, 3, 4, or 5 PCB

Rev. 2 uses TRRS for interconnect between halves
Rev. 3 uses USB-C for interconnect between halves
Rev. 4 uses USB-C for interconnect between halves and has Kailh Hotswap sockets pre-installed
Rev. 5 is the same as Rev. 4, but has additional bottom row layout options

FR4 Plates

Cables to connect to computer (USB-A to USB-C) not included
Keycaps not included

For keycap options, here's our list of recommended places to order from: Recommended Keycaps
Also see our Keycap Selection Guide

The USB-C to USB-C cable is used to connect both halves together
Cherry MX PCB-mount clip-in stabilizers will be used

Stabilizers will be clipped and lubed

No in-switch LEDs installed, just the pre-existing RGB underglow LEDs

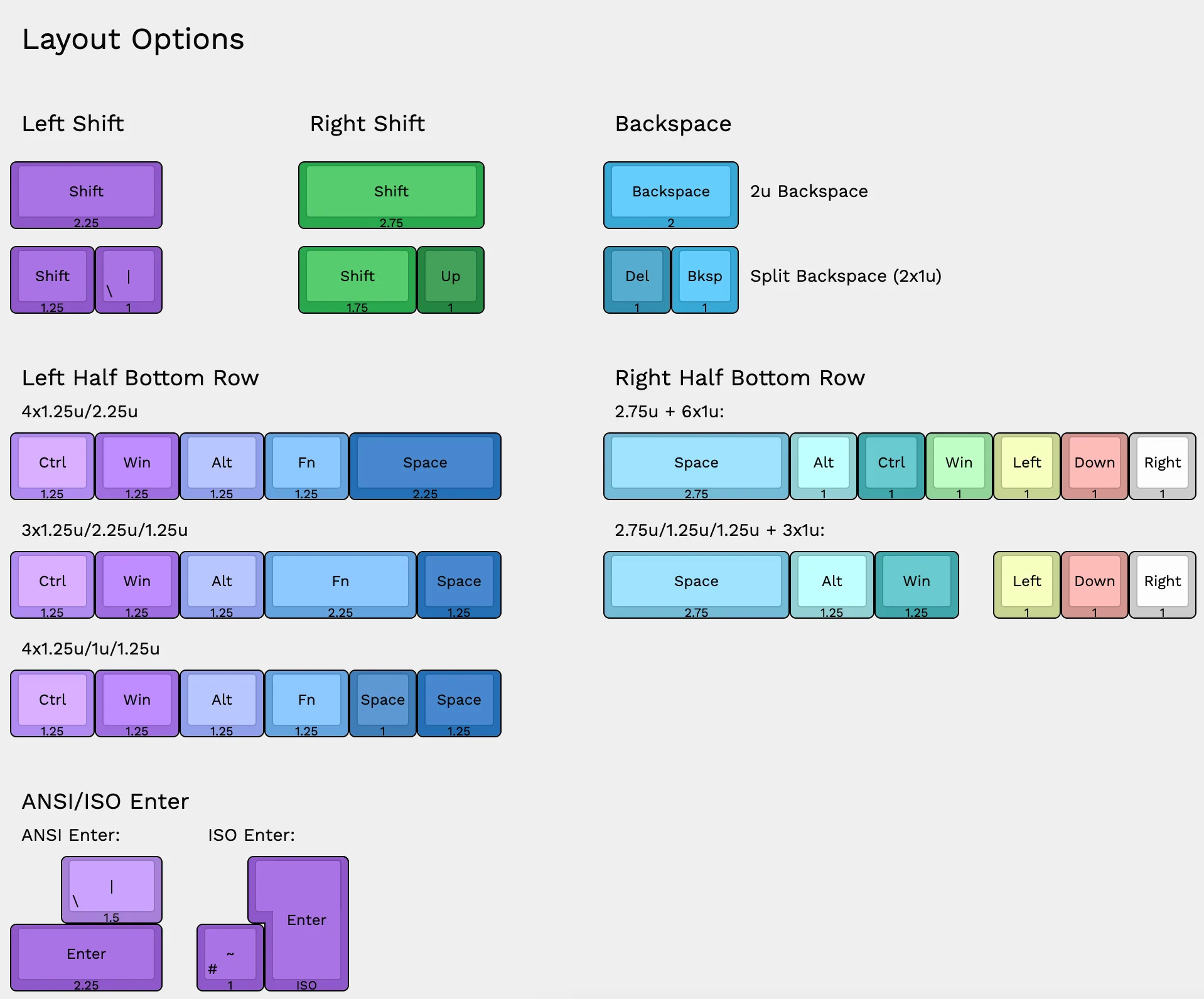

Various layout options available:

Encoders on left and/or right half
Split backspace
ANSI/ISO
Left half bottom row
Right half bottom row
Right Shift: 1.75u-1u or 2.75u
With or Without Left Macro section
Full list of supported layouts
Note: Not all of the options shown in the image are available for Rev. 4 & 5, the possible options will change if a Rev. 4 or 5 PCB is selected

Switch Options

Kailh Box Jades (Clicky)
Durock Shrimp 67g (Silent Tactile)
Durock Dolphin 62g (Silent Linear)
Milky Gateron Yellows (Linear)
Customer Supplied

For this option, email us in advance so we can give you the mailing address to send switches to

Self-Installed

For hotswap boards only
You will install your own switches, and you must remove the bottom plate to support the PCB while installing switches

Unsure what to select? See this page about the various switch options we have: Keebio Switch Options

Default Keymapping:

The default keymapping that the board is pre-programmed with can be found here: Default Keymaps

Need Help Selecting Options?
