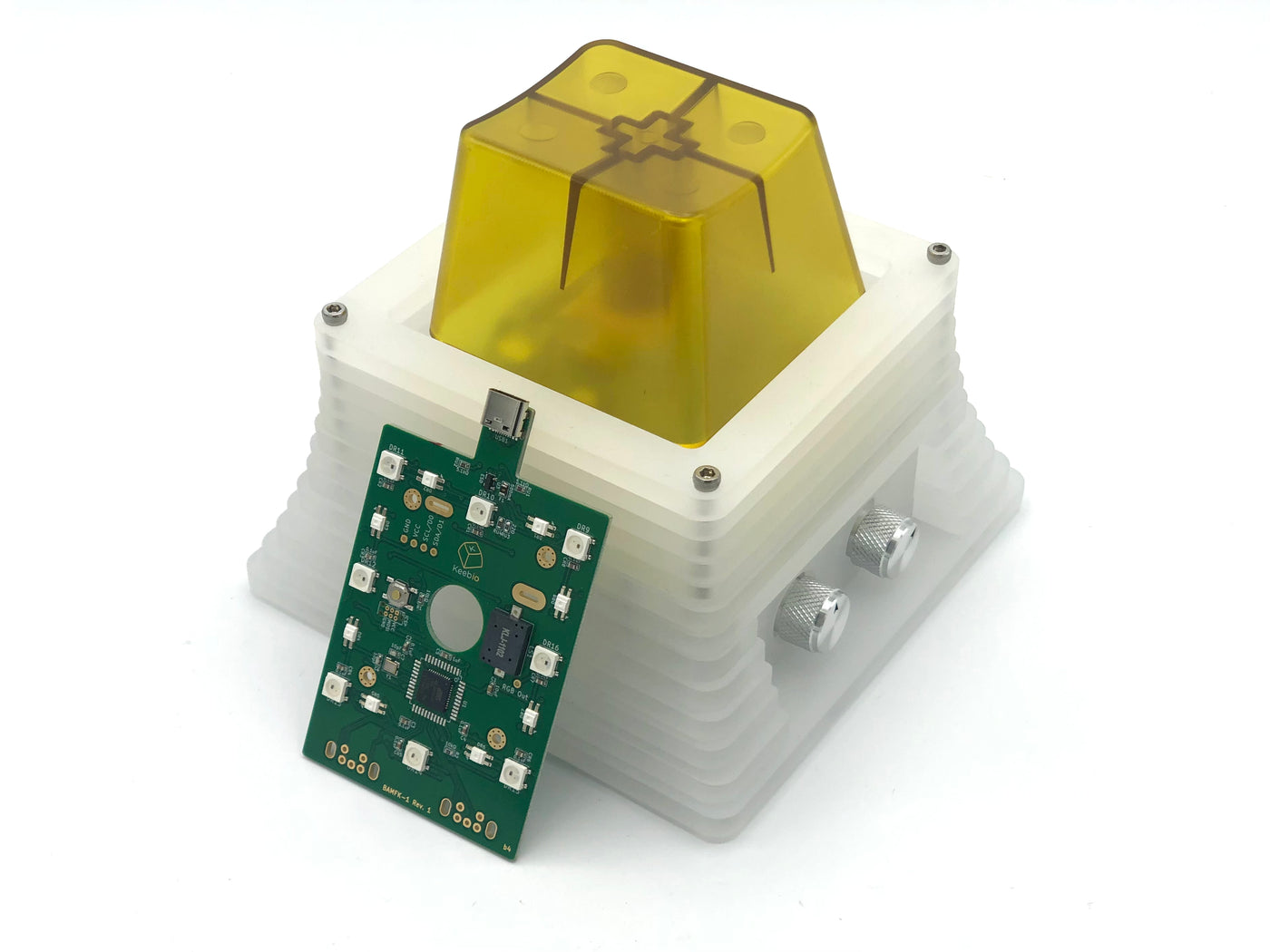

BAMFK-1 - Big Switch PCB

A new PCB for the NovelKeys Big Switch!

Case Options

An acrylic case is available here that has everything you need, including the PCB: BAMFK-1 Acrylic Case

Alternatively, if you'd like to print off your own case, files are provided here: BAMFK-1 Case Files

PCB Kit Contents

• BAMFK-1 PCB
• (Case not included)

Other Parts Needed

• Big Switch
• 2 horizontal rotary encoders
• 2 rotary encoder knobs
• Note: You will need a 1.5mm hex key to screw in the set screw of the knobs
• Case
• Acrylic Case
• 3D-printed Case

PCB Features

• QMK Firmware with VIA support
• Compatible with Big Switch
• USB-C Port
• ATmega32u4 microcontroller
• 8 underglow RGB LEDs
• 8 upwards-facing RGB LEDs
• Support for 2 horizontal rotary encoders
• Piezo speaker support
• Breakout pins for I2C
• Breakout pin for adding even more RGB LEDs

Build Guide

Build guide for the BAMFK-1
