Convolution - 65XT Keyboard PCB


Sign up to be notified when this is restocked!

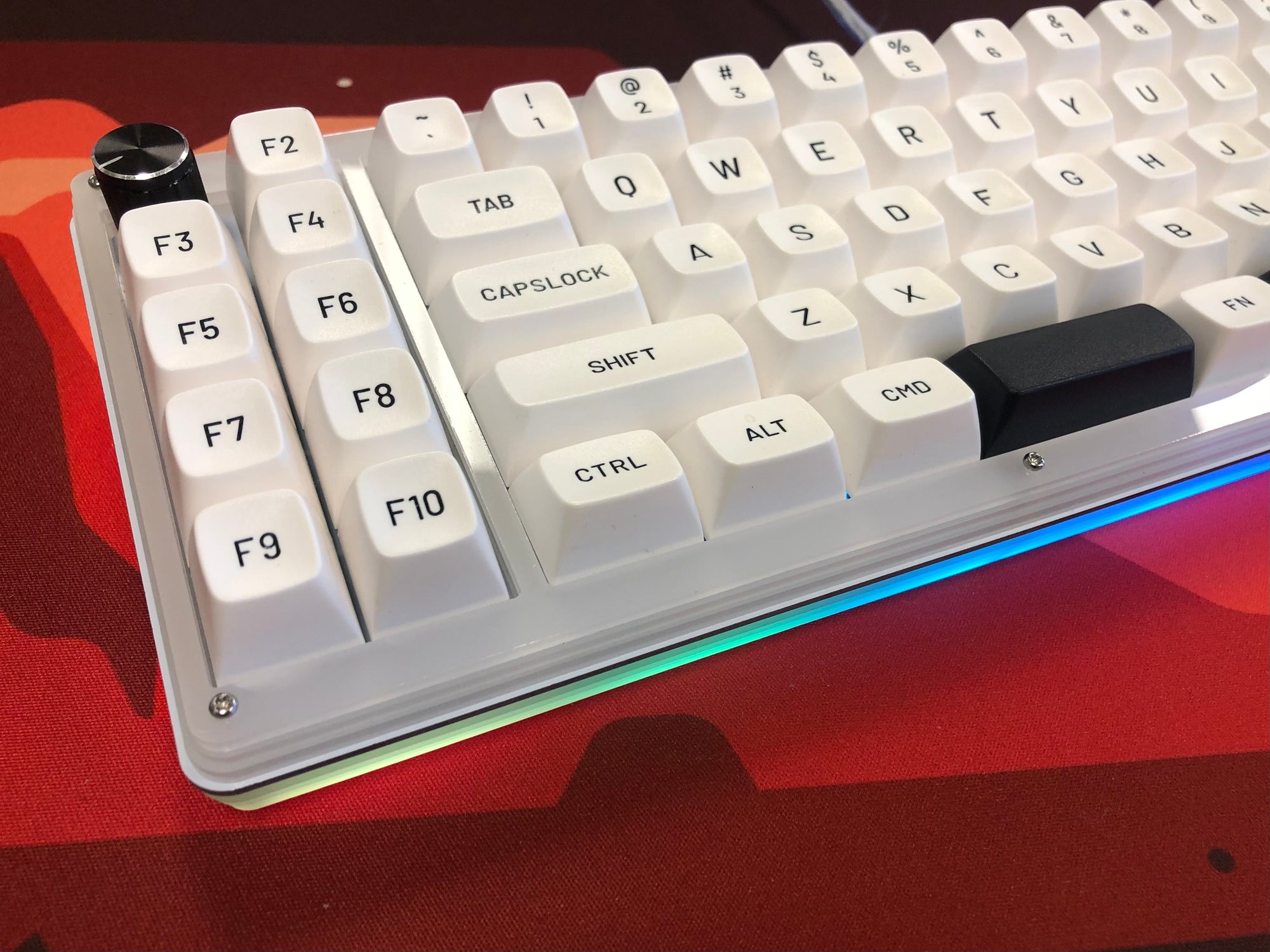

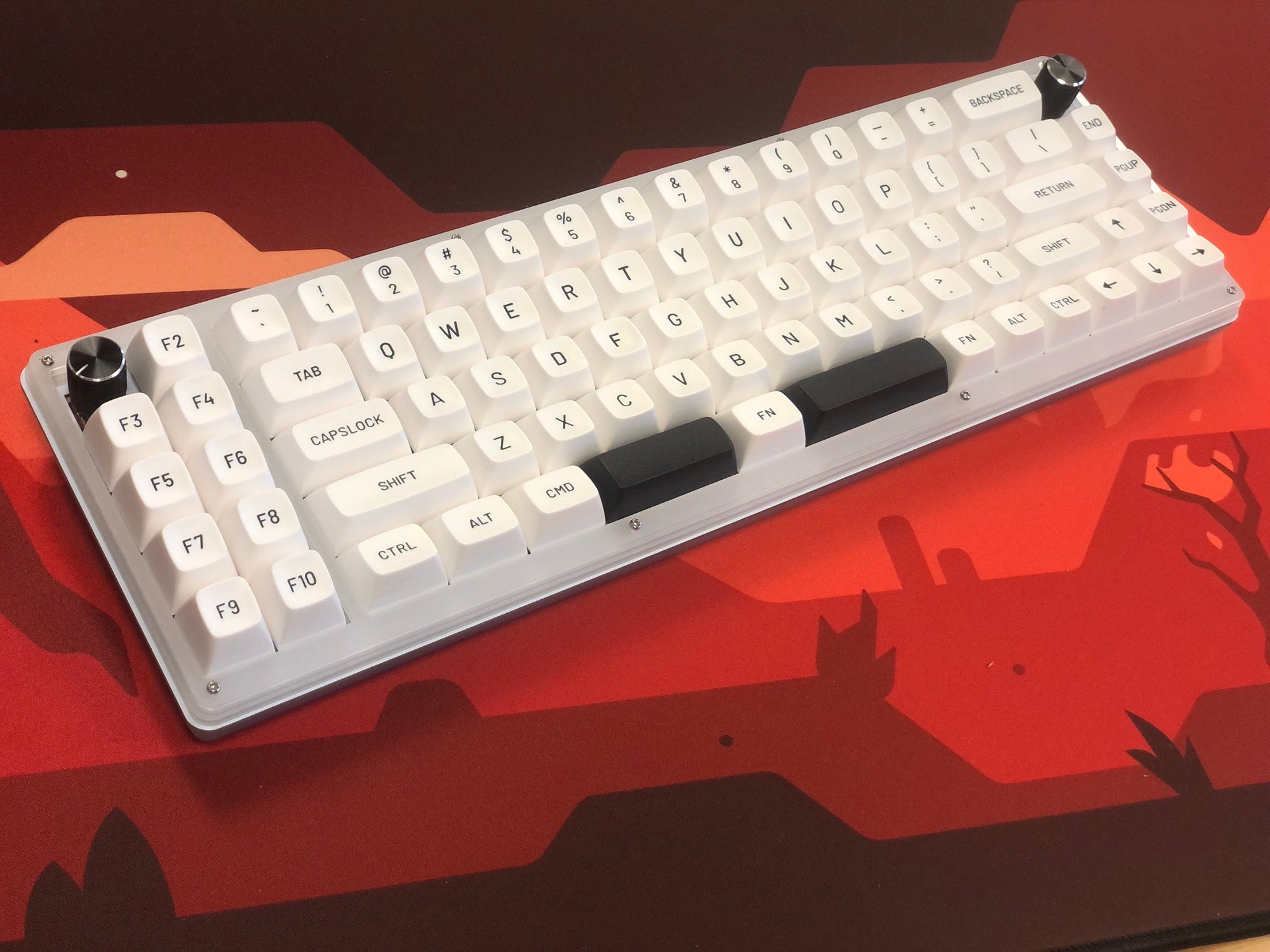

The Convolution is a 65XT staggered keyboard, with 2x5 macro section to the left.

Coming Soon!

Price TBD.


  • RP2040 Microcontroller
  • 16 RGB underglow LEDs
  • Option for rotary encoders at top left and top right corners
  • ANSI and ISO support
  • Layouts supported: Convolution KLE
  • USB-C port
    • JST port is also present for use with a daughterboard, if you decide to break off the USB-C port
  • Compatible with MX-style switches only
  • QMK compatible, pre-flashed with VIA support

    Items needed for Build

    Build Guide

    Work in progress!

    Case Design Files

    Files to be made available on GitHub when ready.

    Default Keymapping:

    The default keymapping that the board is pre-programmed with can be found here: Default Keymaps
