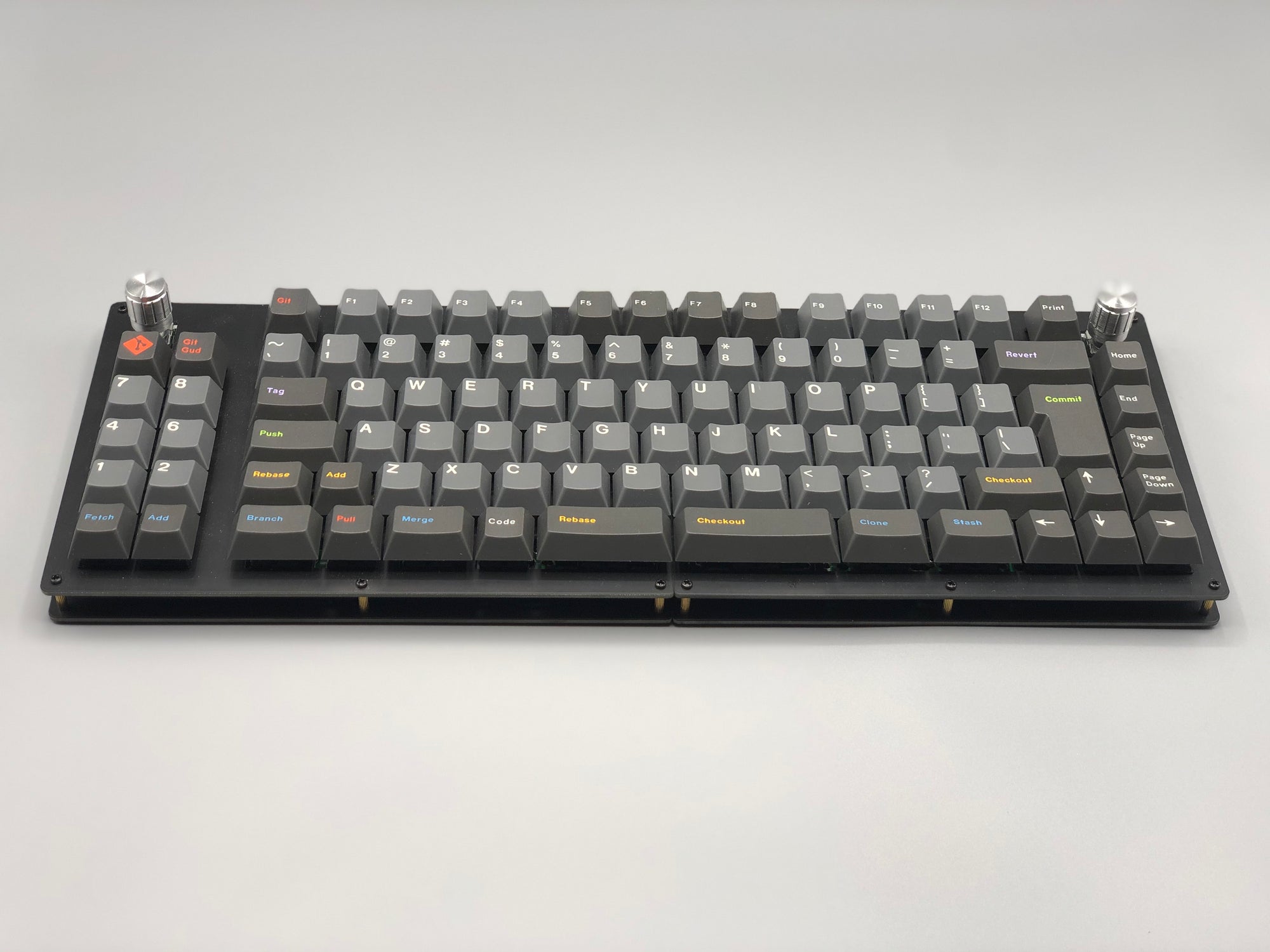

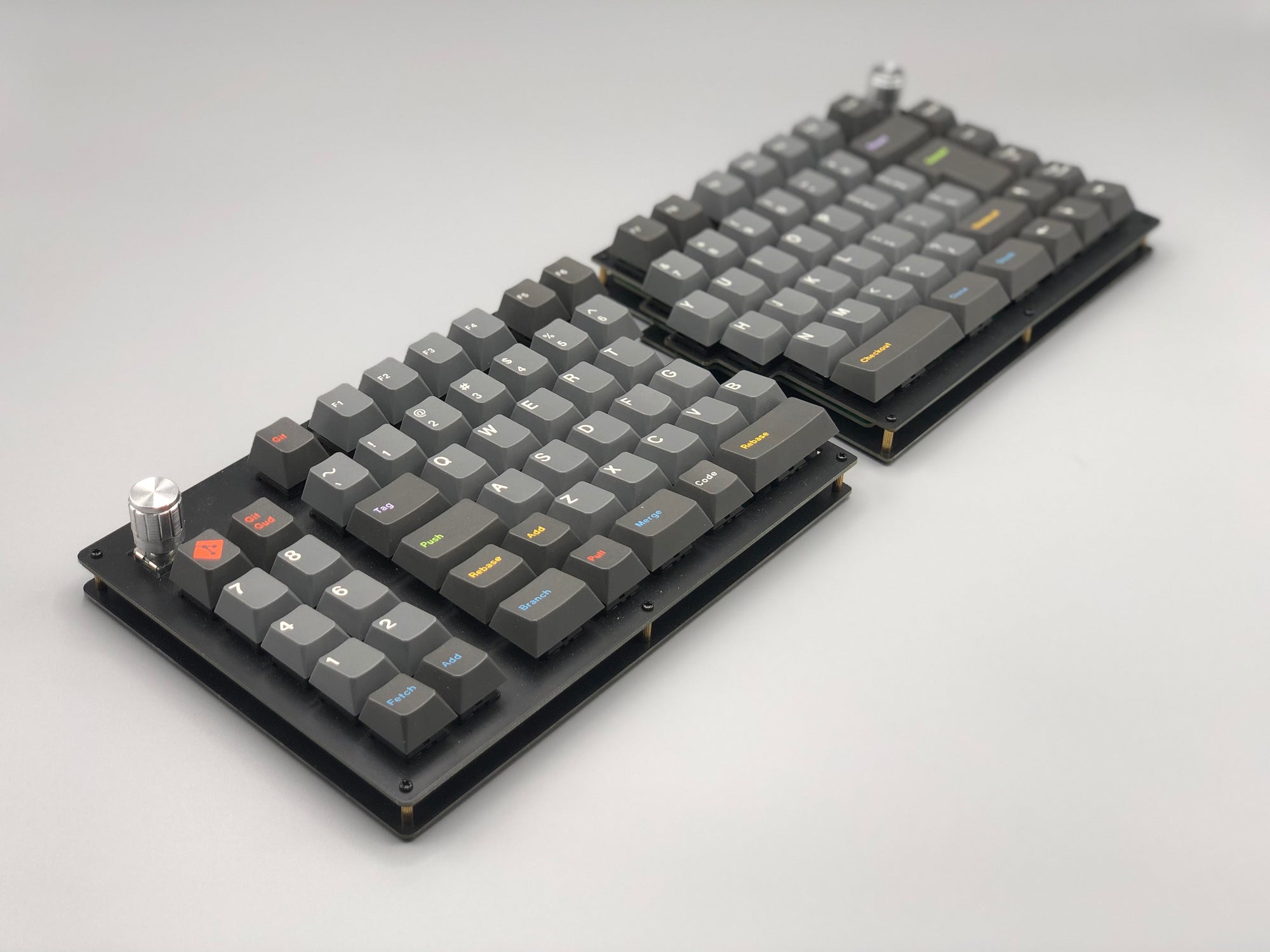

Sinc Rev. 2 PCB Kit - Split Staggered 75% Keyboard
$59.99Split 75% keyboard with optional 2x5 macro section and right column.
Note: Rev. 2 has been discontinued, so please checkout Rev. 3, which features various upgrades, compared to Rev. 2
PCB Kits and Plate Kits are sold separately, so unless you are having your own case/plates made, you will need both a PCB kit and Plate kit.
Acrylic Case available here: Sinc Acrylic Case
Features

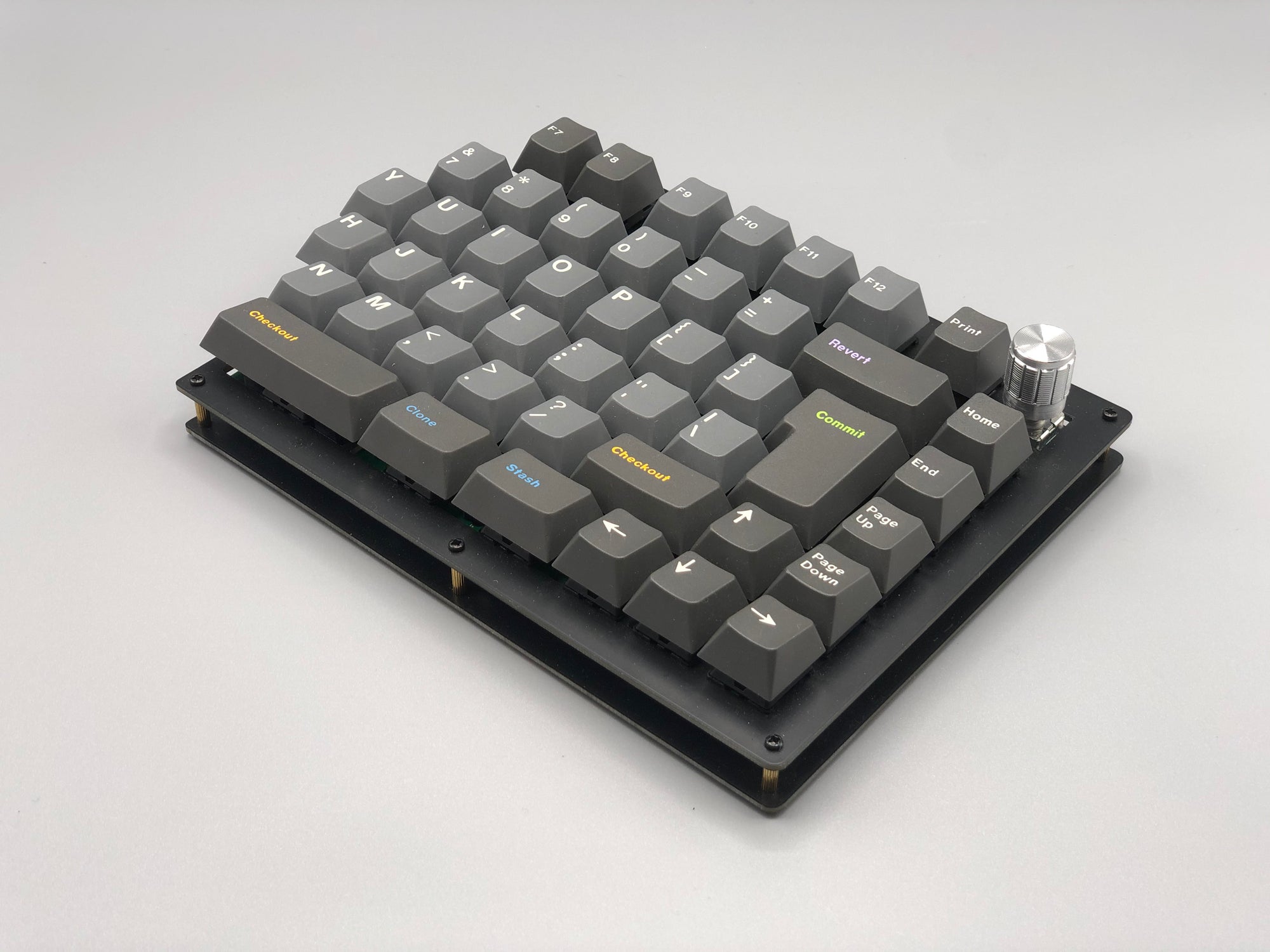

- Option for rotary encoders at top left and top right corners
- ANSI/ISO support
- Options for split backspace and split right shift

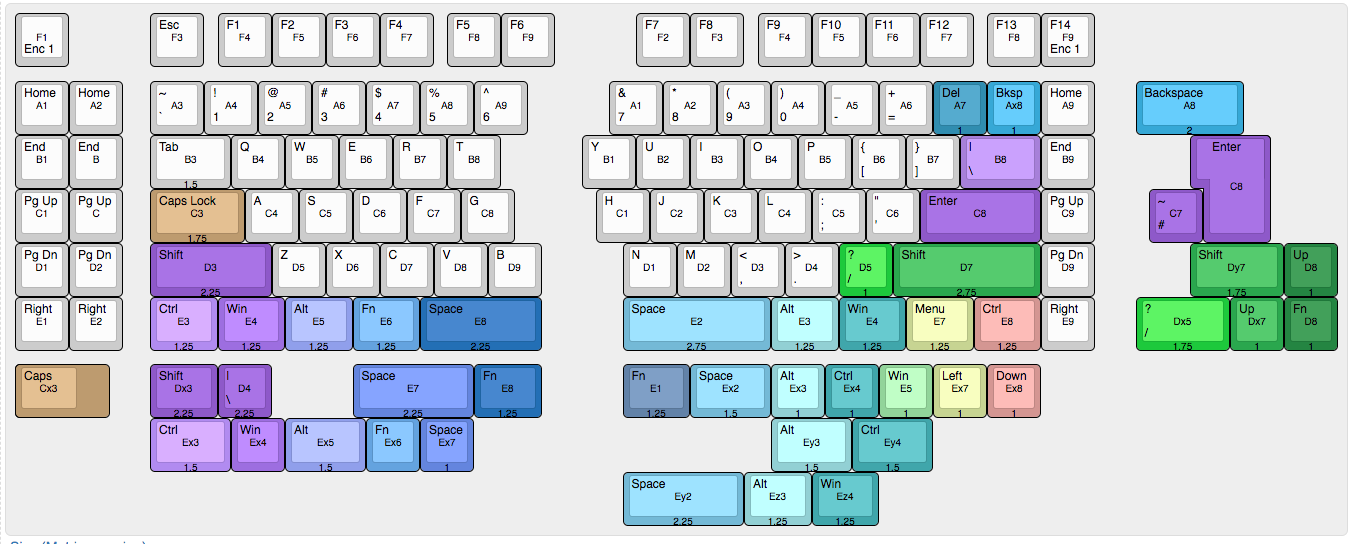

- Layouts supported: KLE link

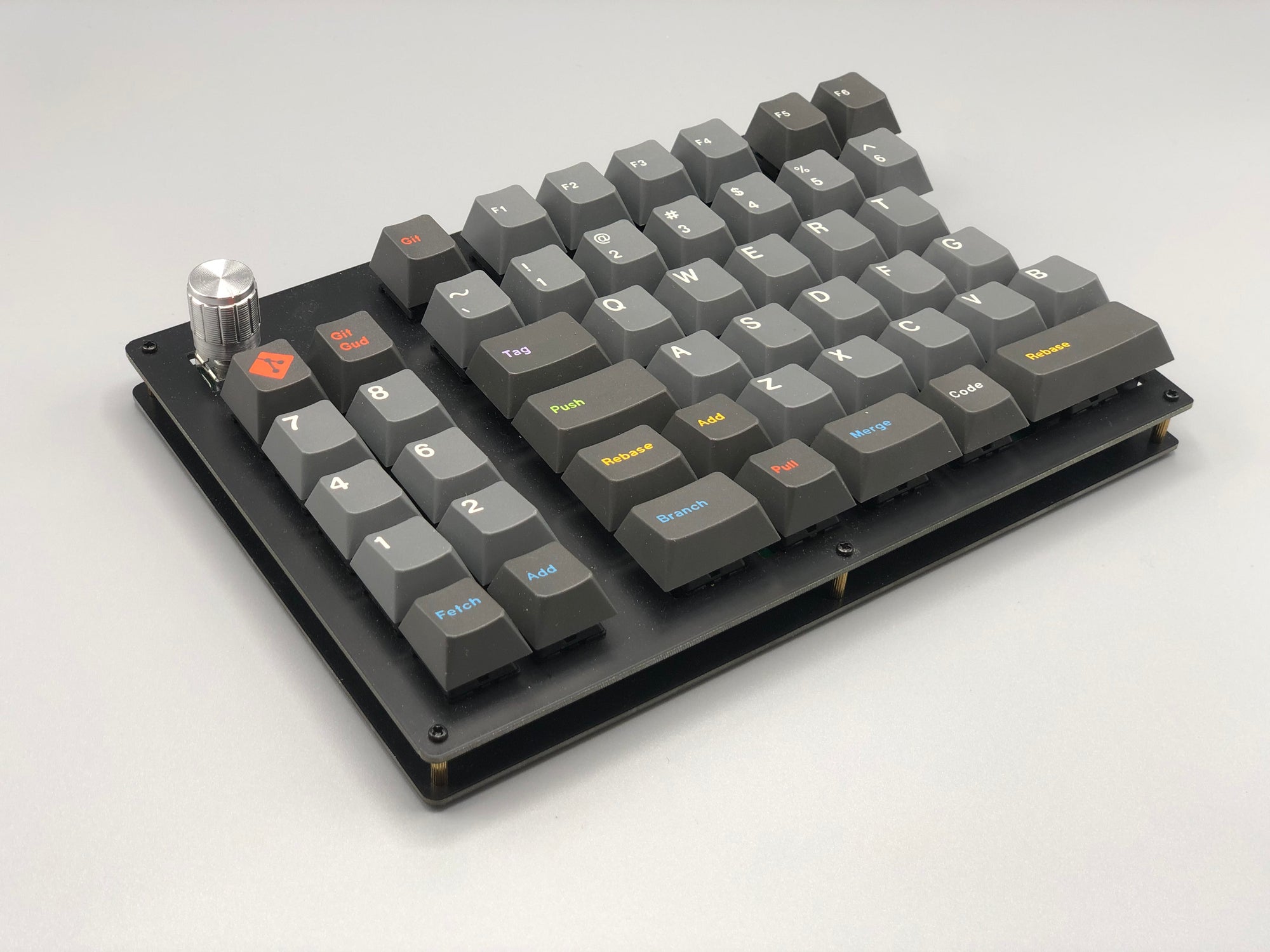

- Macro section on left half and right column on right half can optionally be broken off
- In-switch LED support (single-color 2-Pin LEDs)
- Separately controlled Caps Lock LED
- USB-C port
- Compatible with MX-style switches only
- QMK compatible, pre-flashed with VIA support
PCB Kit

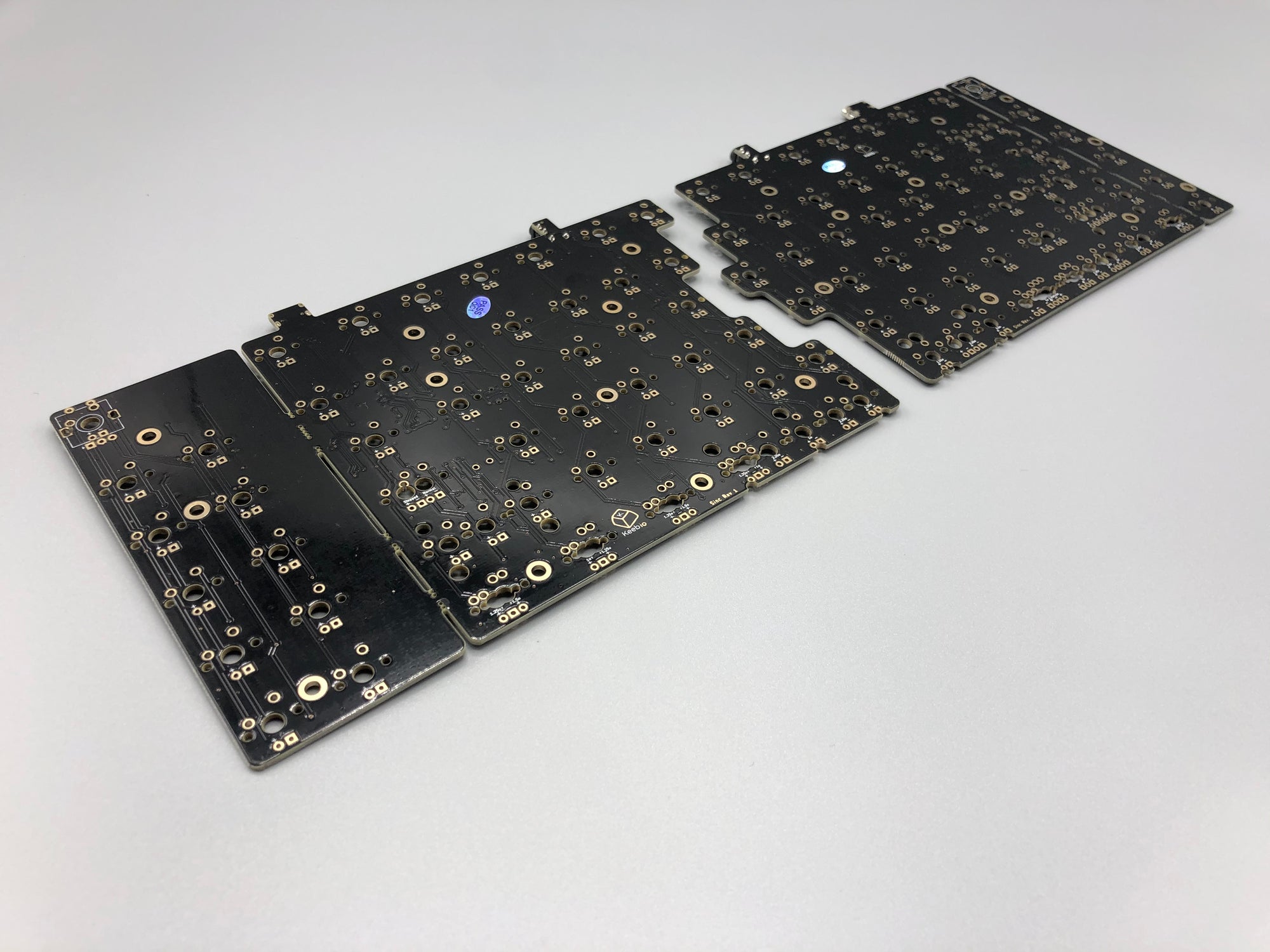

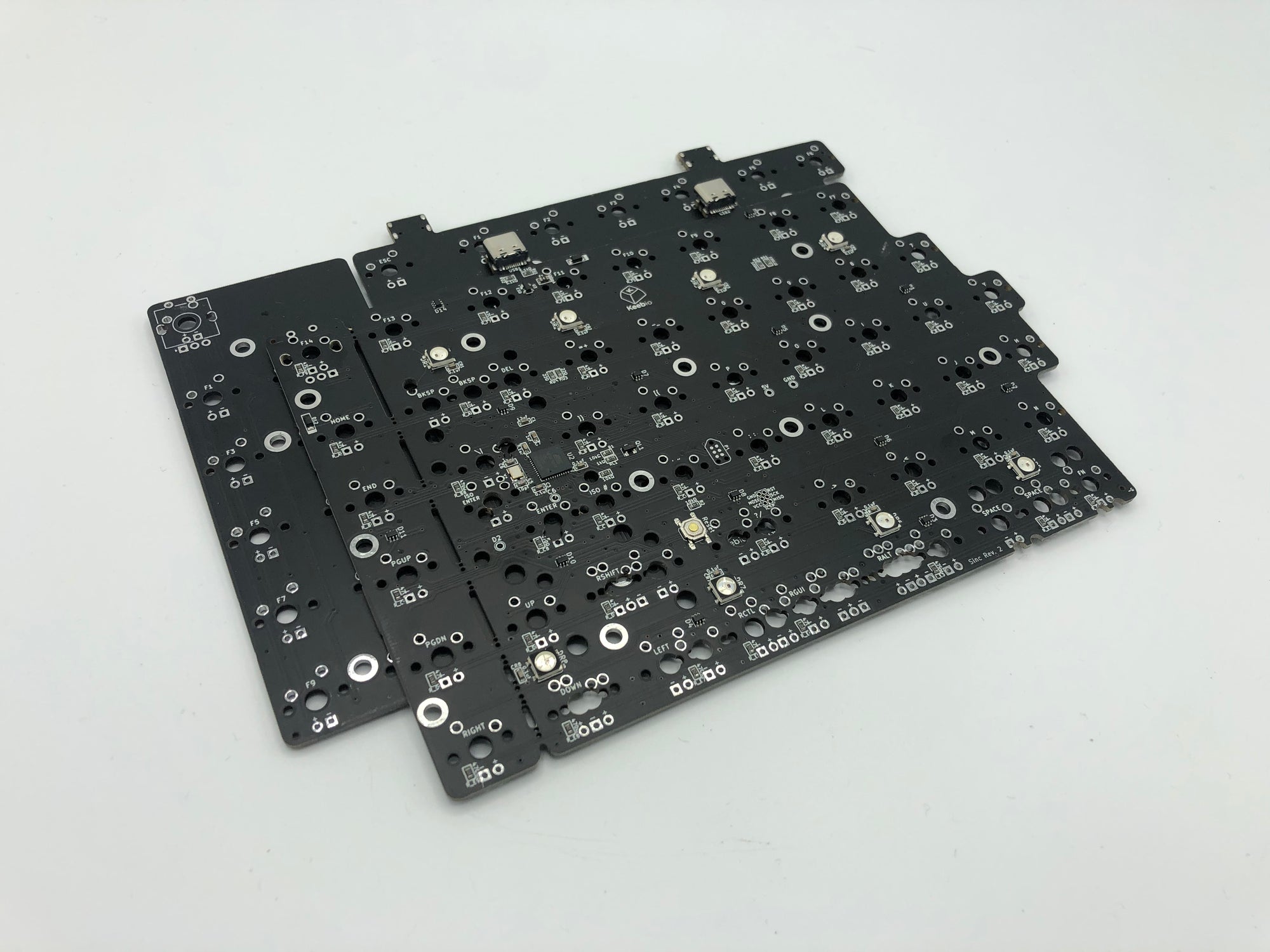

- Comes with left half PCB and right half PCB
- ATmega32u4 integrated on-board

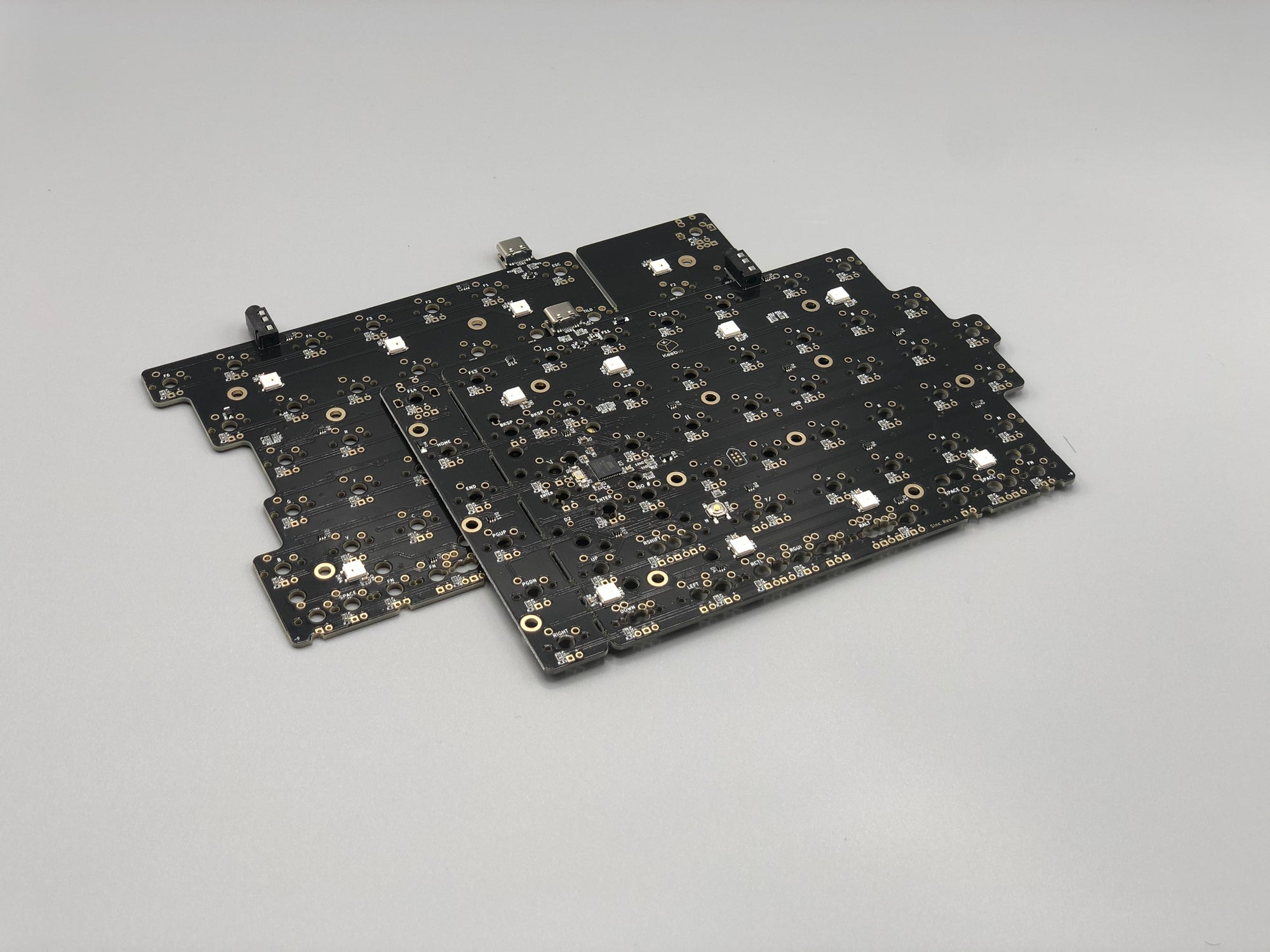

- 8 RGB underglow LEDs on each half
- Single-color, in-switch LED support (non-addressable)
Other parts needed for build
- Plate Kit
- MX-compatible switches
- TRRS Cable (Rev. 1 only)
- USB-C to USB-C Cable (Rev. 2 only)
- PCB-mount MX stabilizers - Most configurations will use 6 stabilizers
- USB-C cable
- 1.8mm or 2x3x4mm single-color LEDs
- Rotary Encoder and knobs
- 3D-printed case to supplement plates (optional)
- Available at Tree Dog Studio
- 99 key switches (or fewer, depending on layout)
Case Design Files
Build Guide
Default Keymapping:
The default keymapping that the board is pre-programmed with can be found here: Default Keymaps
