Rorschach Keyboard - 40% Split Ortholinear w/thumb keys

Rorschach Keyboard - 40% Split Ortholinear w/thumb keys

$37.99 $37.99 Sale ā€¢ Save
PCB Full Kit

90-Day Return Policy

2-Year Warranty

Ā

TheĀ Rorschach is like the Let's Split and Levinson butĀ it has two additional thumb keys on each half.

Note:Ā The 0.1 PCBs for this kit are marked as "Tau" instead of "Rorschach", since Tau was the original name of the keyboard during development.

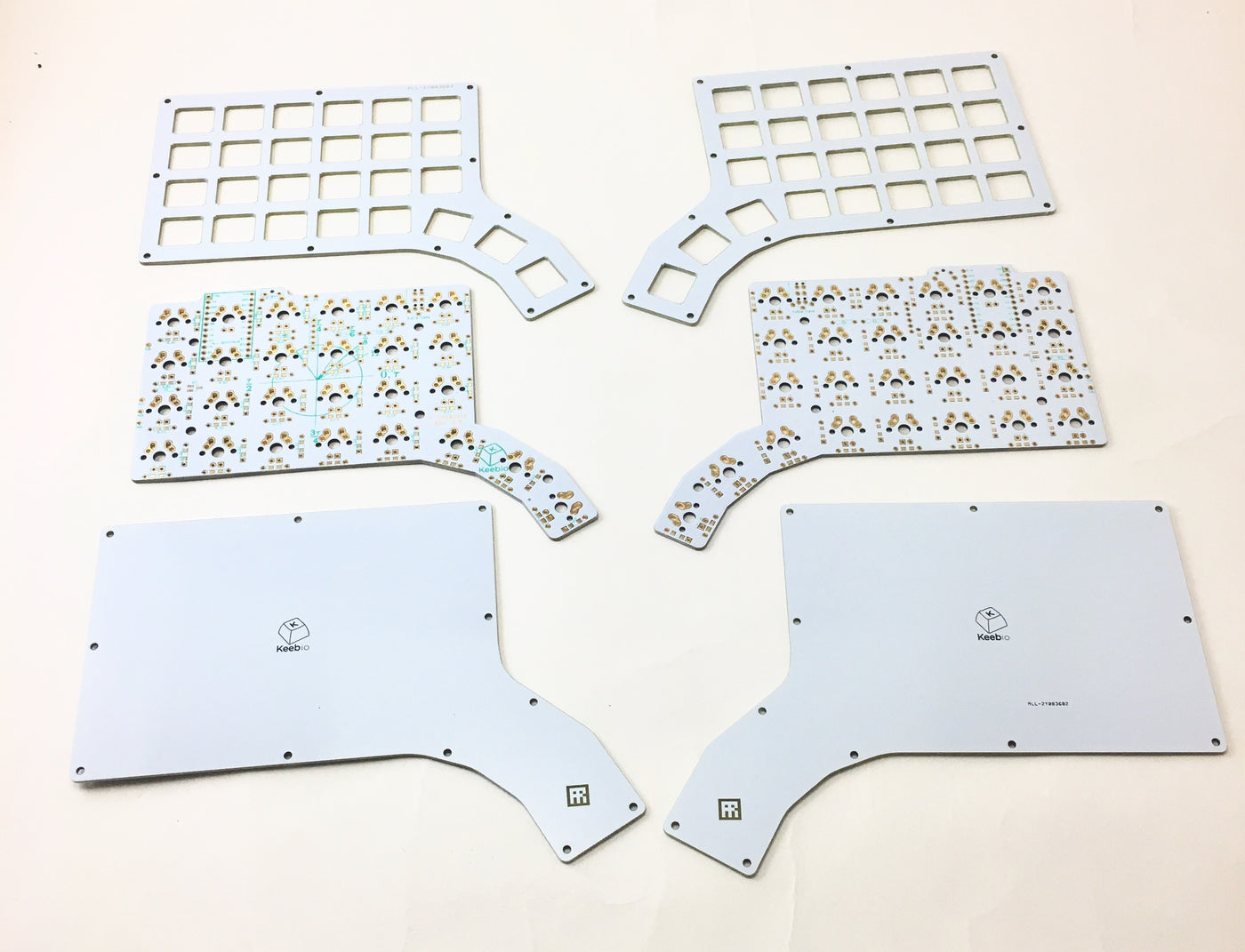

TheĀ full KitĀ includes the following:

  • 2Ā RorschachĀ PCBs
  • 2 Push buttons for reset
  • 2 4.7kĪ© resistors for I2C to install on the master half
  • 2 TRRS jacks
  • 52Ā 1N4148 through-hole diodes (if you want SMD diodes instead, please request this in your order notes)
  • LED support components - 2 MOSFETs, 2 4.7kĪ© resistors
  • Switch plate and bottom plate
  • M2 screws and standoffs

The build guide is nearly identical to that of the Iris, so you can use this build guide.

This keyboard uses the popular open-source QMK Firmware with VIA enabled out of the box to allow you to remap all the keys just the way you want them.

Plug your keyboard in, open up the VIA app, and easily change what each key does to get the most out of your keyboard with your customizations! More info on what you can do here: VIA Usage Guide

  • 26 Diodes per PCBĀ (through-hole and SMD diodes supported)
  • 2Ā Arduino Pro Micro
  • 2 Push buttons (included with this item)
  • 2 4.7k resistors if using I2C (included with this item)
  • Switches - Alps or MX-compatible
  • Case/Plates
  • 2 TRRS JacksĀ (included with this item)
  • TRRS cable
  • Micro USB cable
  • Optional - LED support components - 2 MOSFETs, 2 4.7kĪ© resistors (included)
  • Optional - LEDs and 470Ī© resistors
