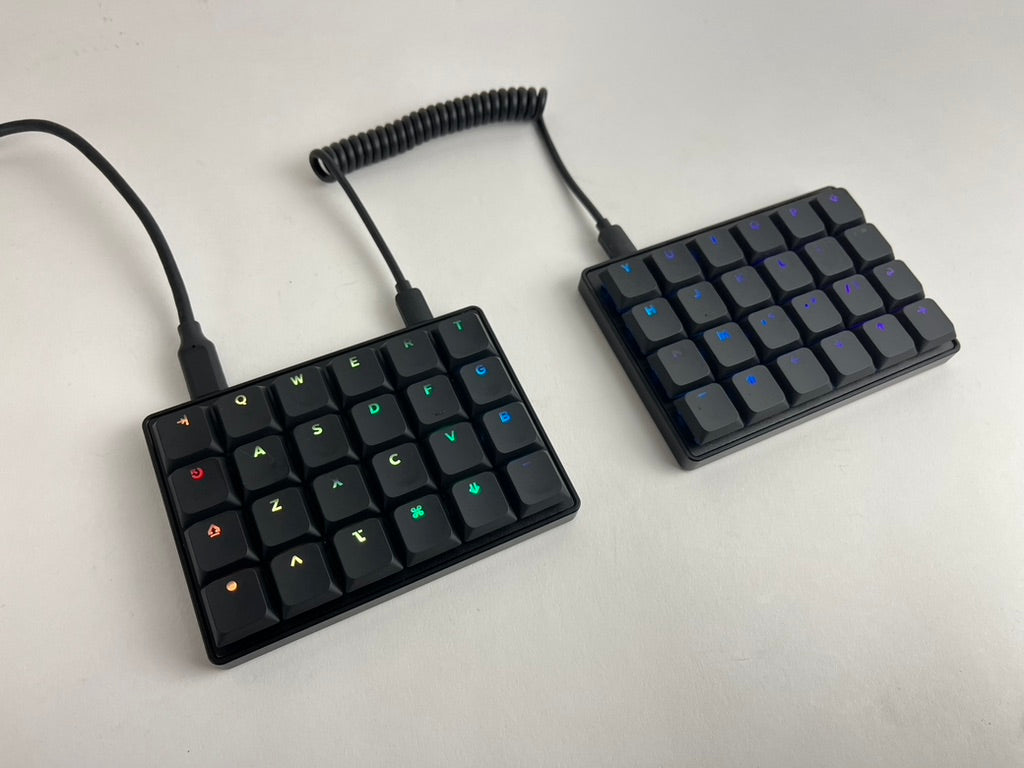

🎉 New! Built Nyquist LM with black LPF keycaps, backlit rainbow gradient from left to right, and a coiled cable joining the halves.

Nyquist LM Kit

$239.99

The Nyquist LM gives you a 60% (or 40%!) low-profile split ortholinear for comfort on-the-go.

  • Compact or Tiny: Choose between the compact 60% Nyquist layout and the essentials-only 40% Levinson layout. Will you take more keys to do your bidding or give your fingers a rest from reaching?
  • Ortholinear Convenience: Keep your fingers doing more of what they're best at. Let them focus on moving in a vertical line, instead of all that horizontal motion from a standard keyboard.
  • Simple Build: Hotswap sockets and tray construction mean you can put this together with just your hands, no tools needed!
  • Fully Programmable: Remap keys with VIA right in your browser. No downloading drivers or compiling firmware.
Type 5-Row
Loading options...
  • Shipping Information

    Free U.S. Standard Shipping on Orders Over $150

    Getting your order quickly shouldn't cost a fortune. If your order totals $150 or more, you qualify for free standard shipping. Orders placed before 12pm EST will generally ship the same day; orders placed over the weekend or on recognized holidays will generally ship the next business day.

    Some Restrictions Apply:

    • Available for orders shipped to the United States only (excludes international orders)
    • Excludes orders containing oversized items
  • 2-Year Warranty

    Our keyboards and parts at Keebio are covered by a 2-year warranty from when you receive it. Just email us at [email protected] if you've got an issue.

    What's Covered

    Keebio will repair or replace any product found to have a defect in materials or workmanship, such as:

    • PCB failure
    • LED/lighting failure
    • USB port issues

    See more info here: Warranty Policy

  • 90-Day Returns

    We want every keyboard we ship to feel like the right fit from day one, which is part of why tens of thousands of customers have kept choosing us over our 9+ years in business.

    If things don't work out for you after it arrives, you have 90 days to return it for a refund as long as it is in a similar condition to the one you received.

    See more info here: Refund Policy

Nyquist LM Kit
$239.99
This is for you if you're looking for:

An ortholinear split built for focused typing

Ortholinear layout for typing that feels right.

Perfectly aligned columns mean your fingers move straight up and down, not diagonally. Combined with the split design, it's a layout that removes twisted up wrists from your typing.

4-row or 5-row, your call.

Pick 4-row for the most compact footprint or 5-row if you want a dedicated number row. Same hotswap sockets, same VIA programmability, same premium build either way.

Configured and ready from the first keypress.

Every Nyquist LM ships with QMK/VIA firmware pre-flashed. Open the VIA Configurator in your browser and remap any key without writing code.

WHY THE NYQUIST LM

Every Detail Considered

Built Nyquist LM with black LPF keycaps, backlit rainbow gradient from left to right, and a coiled cable joining the halves.

Premium aluminum build.

CNC switch plate and quality case hardware give you that solid feel you want out of a higher-end board. Not thin, not plasticky, not cheap.

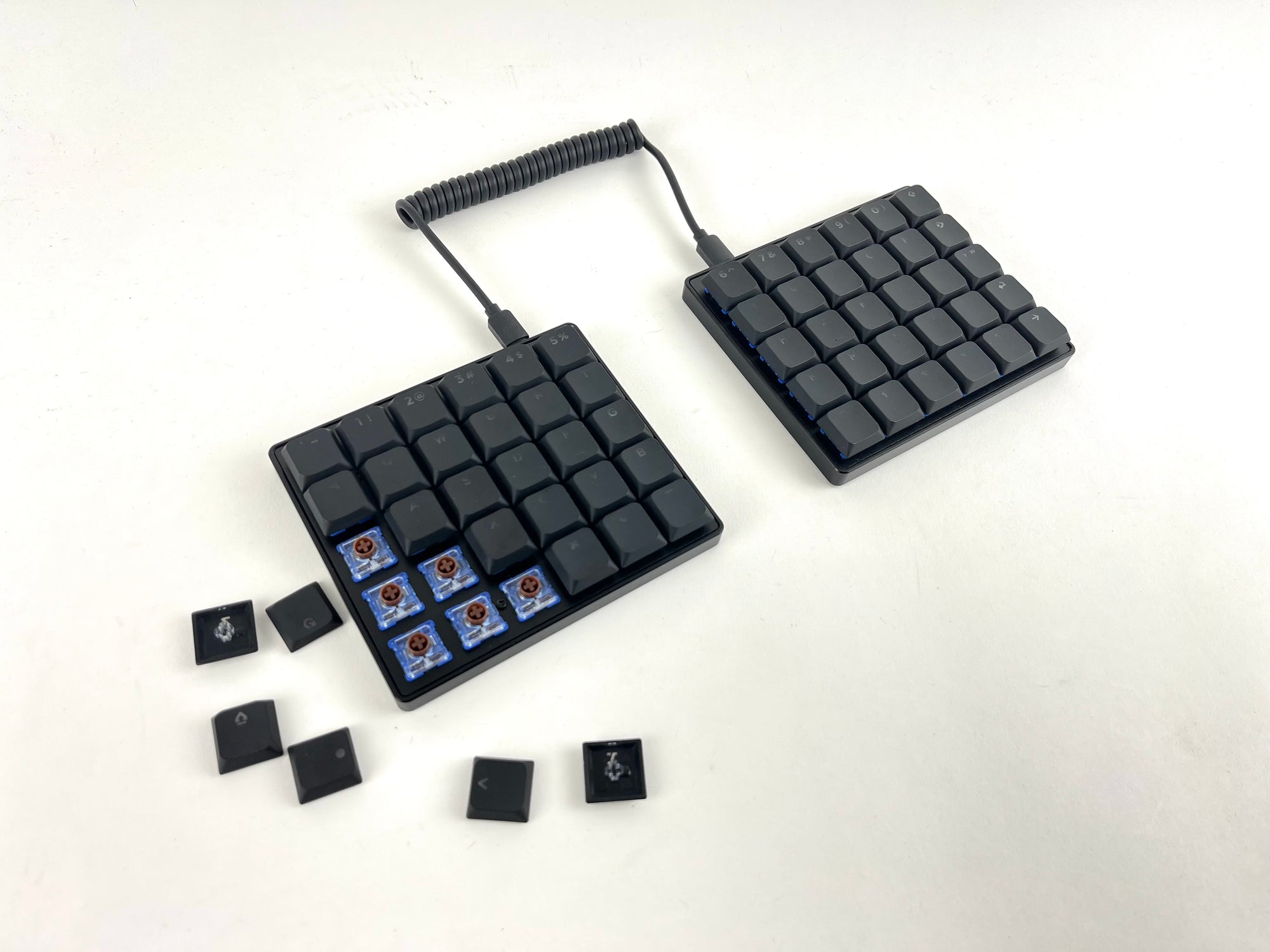

Hotswap sockets built in.

Kailh Choc V1 or V2 switches drop in without soldering. Try different feels anytime or use different switch types for different keys to truly customize your typing experience.

True split, true ortholinear.

Two independent halves connected by a USB-C cable. Separate your hands as wide as your desk allows, or keep them close. Grids with perfectly straight columns mean each finger moves straight up and down.

COMPATIBILITY

Built to Work With Your Setup

Close-up of the Nyquist LM left half in black aluminum case with black LPF keycaps, rainbow gradient from left to right, right half partly visible.

Remap without writing code.

VIA Configurator runs in your browser. Click a key, assign a new function. Your custom layout saves to the keyboard itself, so it follows you between computers. If you want deeper control, QMK firmware is fully open source.

Works with every operating system.

Windows, macOS, Linux, ChromeOS. Plug it in and start typing. No drivers to install, no permissions dialogs, no software required.

Support whenever you need it.

Step-by-step build guides at docs.keeb.io, an active Discord community where Keebio staff answer questions daily, and /r/olkb for deeper dives. You're never troubleshooting alone.

  • Works with Windows, macOS, Linux, and pretty much any OS you throw at it
  • Powered by STM32G431 microcontrollers
  • Per-key RGB LEDs for all your lighting needs
  • Hotswap sockets make changing out switches a breeze
  • Works with both Choc V1 and Choc V2 switches (2-pin V2 only, or 3-pin if you clip the extra pin)
  • Standard MX spacing at 19.05mm both vertically and horizontally
  • USB-C ports on both halves to link the board together and connect to the computer
  • Weight fully-built comes in at 15.5oz/438g for the 5-Row version and 12.3oz/360g for the 4-Row version
  • Dimensions: Each half is 21.3mm x 86.2mm x 19.5mm (4-Row), 121.3mm x 105.25mm x 19.5mm (5-Row)
  • Aluminum switch plates for solid build quality
  • Isolation mounting for better sound and typing feel
  • EVA foam switch support layer for extra stability
  • Silicone tray liner to support the hotswap sockets and improve sound
  • A Stock: 0-1 minor visual defects
  • B Stock: More noticeable machining marks and/or dings on the surface
  • Case design files for the Nyquist LM can be found here, if you'd like to print your own case: Nyquist LM Case
  • Aluminum tray case
  • Low-profile switches and compatible keycaps that fit your needs
  • Aluminum plate to keep your switches steady
  • Foam support piece that goes between the switch plate and PCB
  • Nyquist LM PCB – the brain of your build
  • Silicone tray liner to keep those hotswap sockets supported
  • 8 pre-installed removable silicone feet so it stays in place
  • 8mm M2 screws for assembly, pre-installed
  • Keyboard link cable (USB-C to USB-C) to connect the halves
  • Gray compact carrying case so you can take your split setup anywhere
  • Compatible with Choc V1 and Choc V2 switches
  • Split design that lets you position each half however feels right for you
  • Ortholinear stagger gives you a grid-style layout that keeps your fingers moving in straight, comfortable lines
  • Slim, low-profile build makes portability easy and your switch from a laptop keyboard feel more natural
  • Compact 60% or 40% layout that keeps everything you need within easy reach
  • Compatible with the 3D printed case files available on our GitHub: Nyquist LM Case
  • This keyboard uses the popular open-source QMK Firmware with VIA enabled out of the box to allow you to remap all the keys just the way you want them.
  • Plug your keyboard in, open up the VIA app, and easily change what each key does to get the most out of your keyboard with your customizations!
  • More info on what you can do here: VIA Usage Guide

Frequently Asked Questions

Our keyboards are designed to be approachable even if you've never built one before. Every kit ships with step-by-step guides (found at docs.keeb.io), and if you get stuck (it happens), our Discord server and the /r/olkb subreddit are where builders and Keebio staff answer questions daily. You're never building alone.

Yes. We work hard to make international shipping as easy as we can. Orders take 7 to 28 days, depending on where you are, and customs duties may apply once the package reaches your country.

Here's how we help: we offer customs prepayment at checkout for most countries, which means the carrier will handle the paperwork and duties upfront so your package lands at your door with no extra steps.

For more questions on shipping, check keeb.io/pages/faq.

Every order ships with a tracking number emailed to you the moment we send it out, so you can follow your package every step of the way.

For extra peace of mind, you can add Shipping Protection at checkout. If your package is lost or damaged in transit, we work with you to resolve it (we know things can sometimes go sideways with postal services, especially for international shipments). You're not on your own if something goes wrong.

We want every keyboard we ship to feel like the right fit from day one, which is part of why tens of thousands of customers have kept choosing us over our 9+ years in business. If you're not sure which version suits your setup (pre-built vs DIY kit vs barebones, MX vs low-profile, tenting vs flat), email us at [email protected] or ping us on Discord before you order. We'll help you pick.

And if it still doesn't click once it arrives: unused and not soldered, you have 90 days to return it for a refund. A 5% restocking fee applies to cover payment processing, and you're responsible for return shipping. But if the product arrives defective or damaged, that's on us, and we'll make it right.

Easy to fix. If your order hasn't shipped yet, email us with a screenshot of what you need to add, remove, or change. We'll update the order and invoice you for the difference (or refund if you're removing something).

This happens constantly with builders. You realize you forgot a cable, or want to swap switches at the last minute. We'd much rather help you get the right order than ship one missing a piece.

Every keyboard product page includes a Design & Compatibility section that spells out exactly what it works with. Most keyboards take MX-compatible switches with standard 19.05mm spacing; LM-series boards use low-profile Choc V1 / V2 or Gateron low-profile switches. Pre-built boards come with switches pre-installed; hotswap kits let you try different feels anytime without commitment.

If you're buying parts separately and want to double-check compatibility before ordering, email us at [email protected] with your setup and we'll confirm what fits.

First things first: it's pronounced KEE-bee-oh, not "keeb-dot-io" (that's just our easy-to-remember URL).

We're a small business located in Durham, NC. We build every keyboard ourselves and our team is behind every order. We usually ship within 3 to 4 business days Monday through Friday, and every order is processed through Shopify's secure payment system (credit cards, Apple Pay, Amazon Pay, and Google Pay accepted).

If you have any questions before or after ordering, contact us by email at [email protected] or find us on Discord. We're happy to help.
