Iris Rev. 6 Keyboard - Hotswap PCBs for Split Ergonomic Keyboard

$79.99

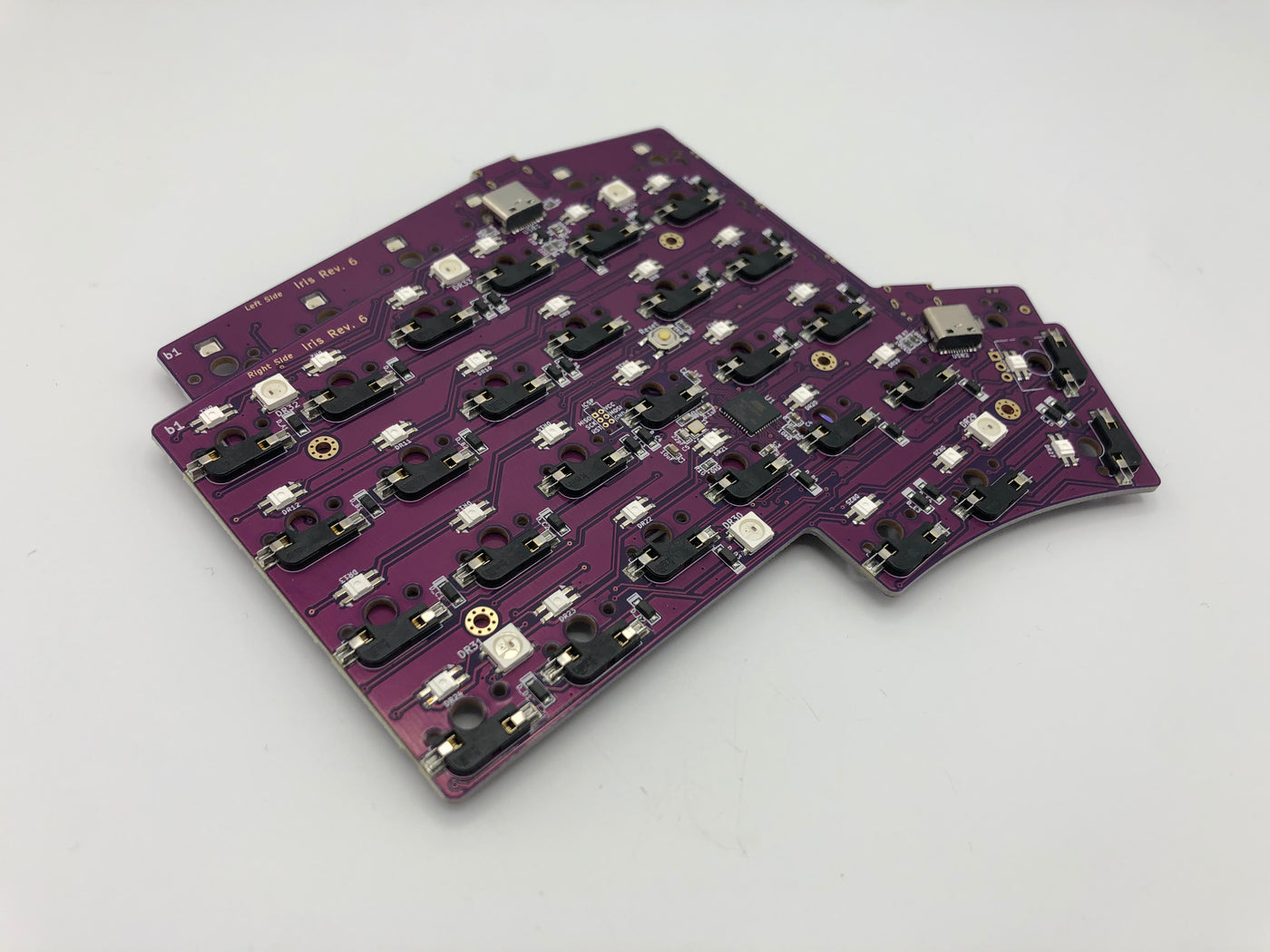

The Iris keyboard, a split ergonomic keyboard with 4x6 vertically staggered keys and up to 4 thumb keys. Time to stop stretching your thumbs out on the Ergodox!

Status: The Rev. 6 is currently out-of-stock and has been replaced with the Iris Rev. 7 PCBs.

Differences with Rev. 6

The differences between this Rev. 6 PCB and the Rev. 4 PCB are the following:

  • TRRS jacks for connecting both halves together have been replaced with USB-C
  • Kailh Hotswap Sockets have been added (MX-compatible switches only)
  • Per-key RGB LEDs added
  • 2u thumb support removed from Rev. 6

Also, due to the replacement of TRRS with USB-C, a different set of plates and case parts are needed, so older parts (Legacy Edition) can not be used. The newer plates/cases (Phoenix Edition) will be compatible with Rev. 5 and Rev. 6.

Item Notes

    Iris PCBs with on-board controller and USB-C port. Just put in your switches and you're done! The rotary encoder pins are not hotswapped, so encoders need to be soldered in if installing them.

    About Rev. 6.1 PCBs: Only difference between Rev. 6 and 6.1 is that encoder side legs no longer need to be clipped off if installing encoders.

    Item Contents

    • Left half PCB
    • Right half PCB

    Items Needed for Build

    Rev. 6 Features

    • On-board ATmega32u4 controller
    • Switch support: MX-compatible only
    • USB-C port
    • 6 RGB underglow LEDs per half (12 total)
    • Per-key RGB LEDs
    • Option for rotary encoders at upper thumb key on each half
    • Pre-flashed with QMK Firmware and VIA configurator support

      Layout

      Each half of the board is a 4x6 matrix with the same vertical stagger as the Ergodox and with 2-4 thumb keys. Alternatively, a rotary encoder can be placed at the upper thumb key of each half.

      Many thanks to Lewis Ridden (/u/GAMING_FACE) for coming up with this design.

      Build Guide

      Iris Rev. 6 Hotswap Build Guide

      Firmware

      QMK Firmware

      The Iris uses QMK for its firmware, and the code for it is here: QMK - Iris directory.

       If you would like to enable RGB controls inside of VIA, follow these instructions: Enabling Iris Rev. 6 VIA RGB Controls
