Fourier Keyboard - Case/Plates (Discontinued)

$24.99 $24.99 Sale Save

Case for the Fourier keyboard. The cases consists of two sets of parts, top/bottom plates and middle layers. The middle layers are optional and can be added in between the top and bottom plates at any time.

NOTE: Left plates now support 4x1u layout at lower left.

    Top/Bottom Plates

    Plates for the Fourier are currently offered in one variant:

    • FR-4 PCB material
      • These plates are made from 1.6mm PCB material (FR-4)
      • Black color

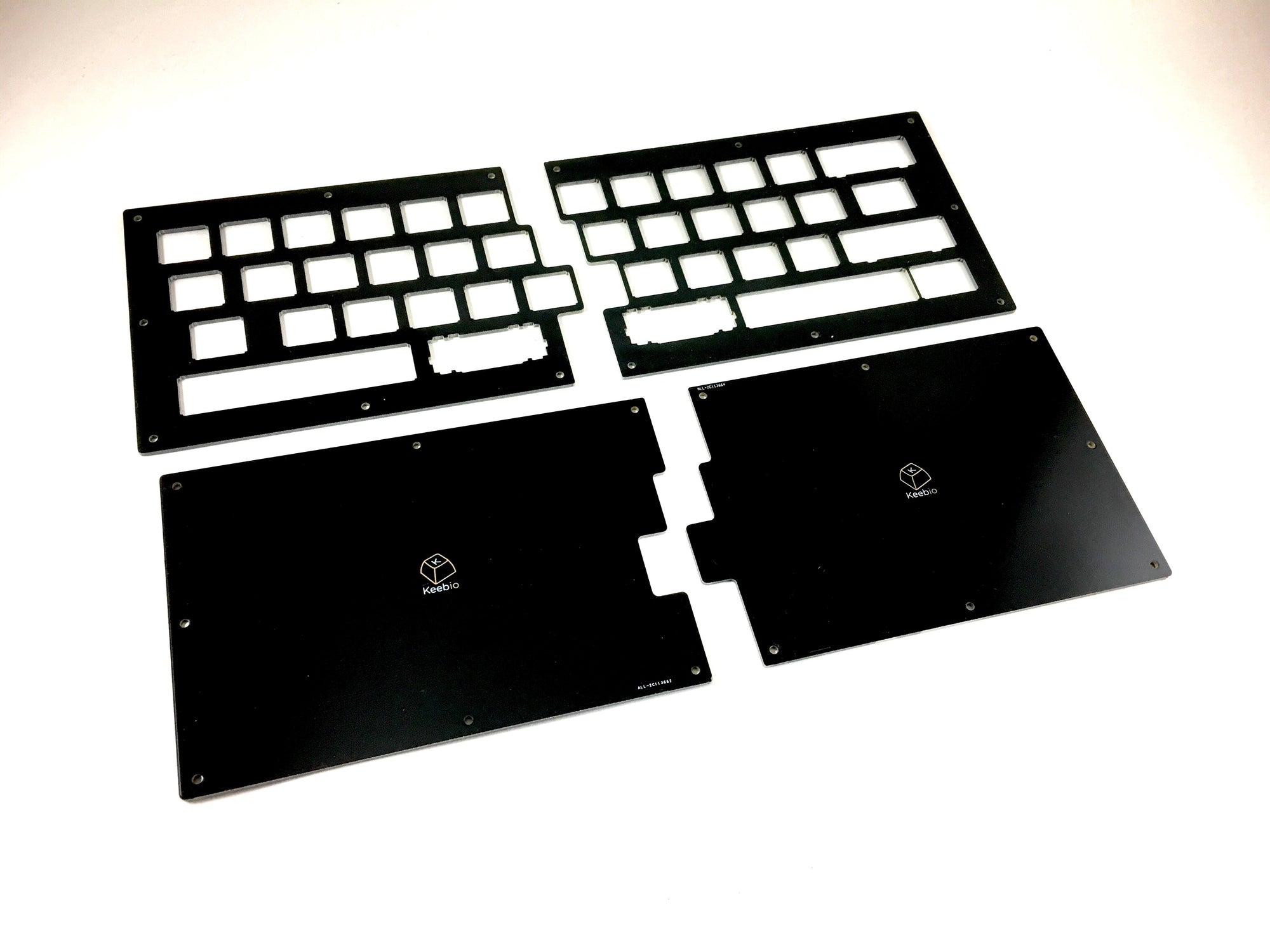

    The plates come with the following:

    • 2 Switch plates
    • 2 Bottom plates
    • 28 M2 6mm screws
    • 14 M2 10mm standoffs for acrylic plates

    Switch plates are compatible with MX and Alps switches and support MX switch top removal. Note that for the non-1u cutouts however, the switches won't have anything on the plate to grab on to, so you need to be careful with alignment when soldering the switch.

    Middle layer


    Not available yet, design to be posted soon.
