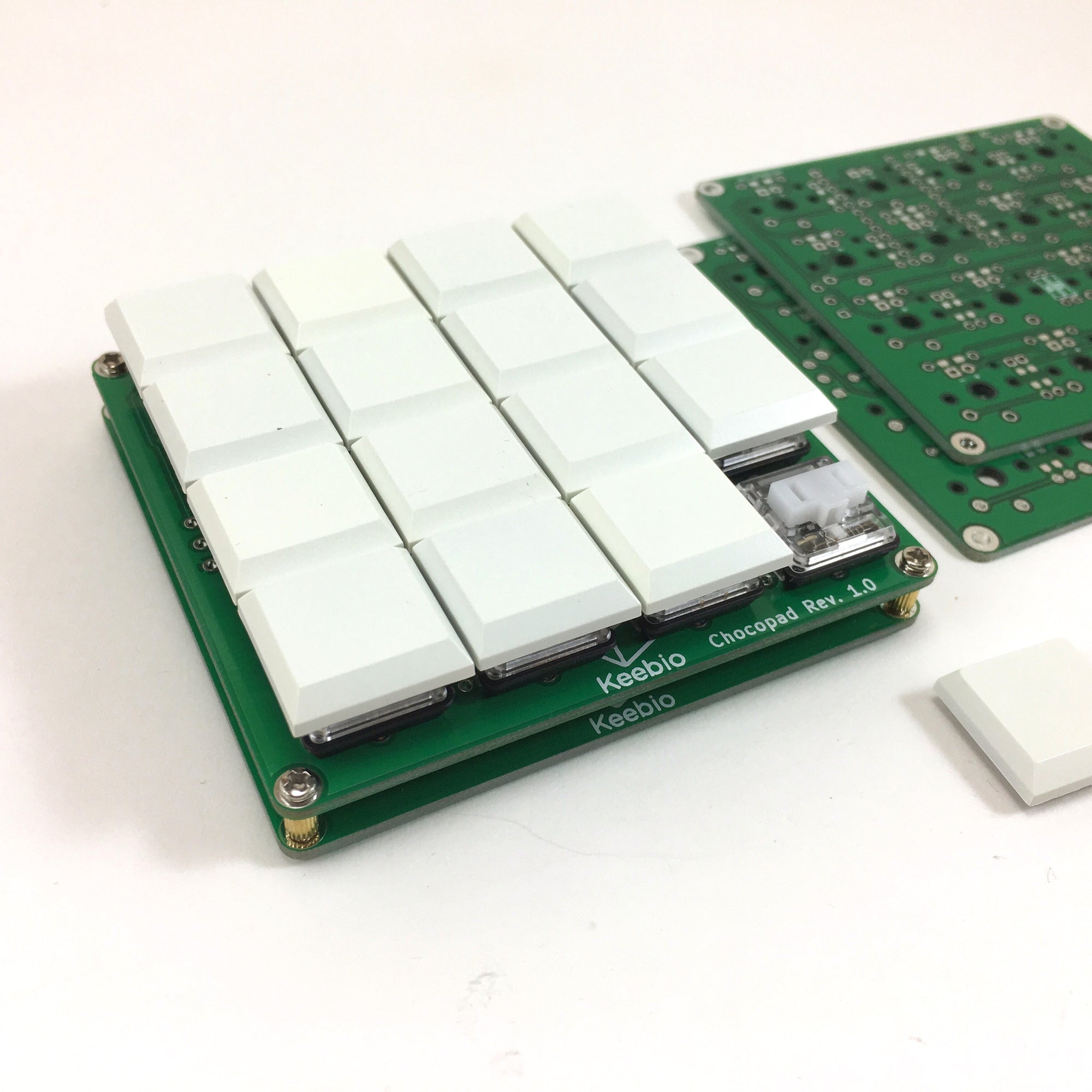

Chocopad Rev. 1 - 16-key Macropad for Kailh Choc Low-Profile Switches

$9.99

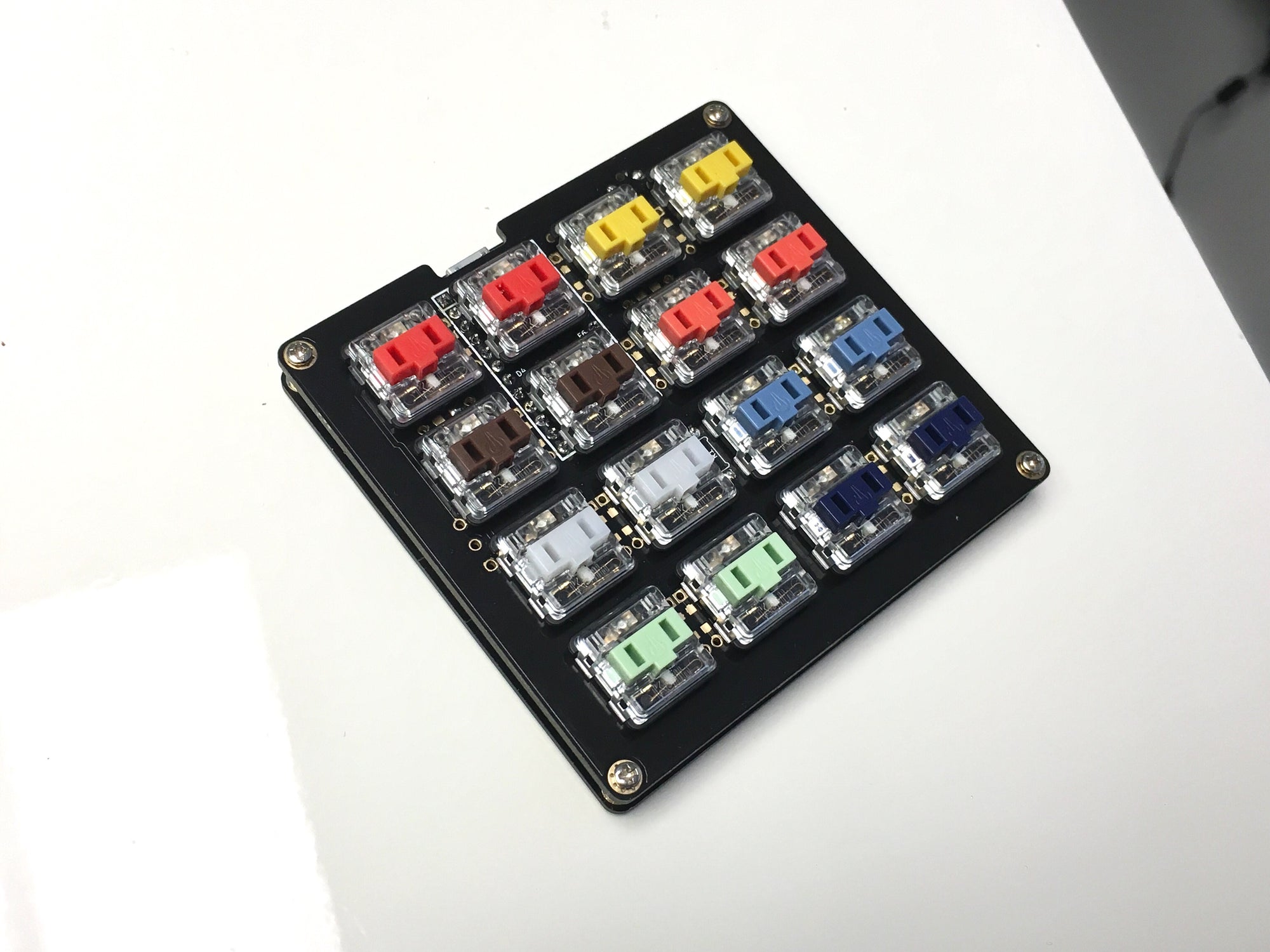

Need a compact macropad or just want to test out some Kailh Choc low-profile switches? Then you'll want this 16-key macropad! (Switches not included)

Note: The Chocopad Rev. 1 has now been replaced by the Chocopad Rev. 2 with hotswap and RGB, so check it out!

Features

  • 4x4 grid of keys
  • In-switch LED support
  • Breakout pins for adding RGB strips

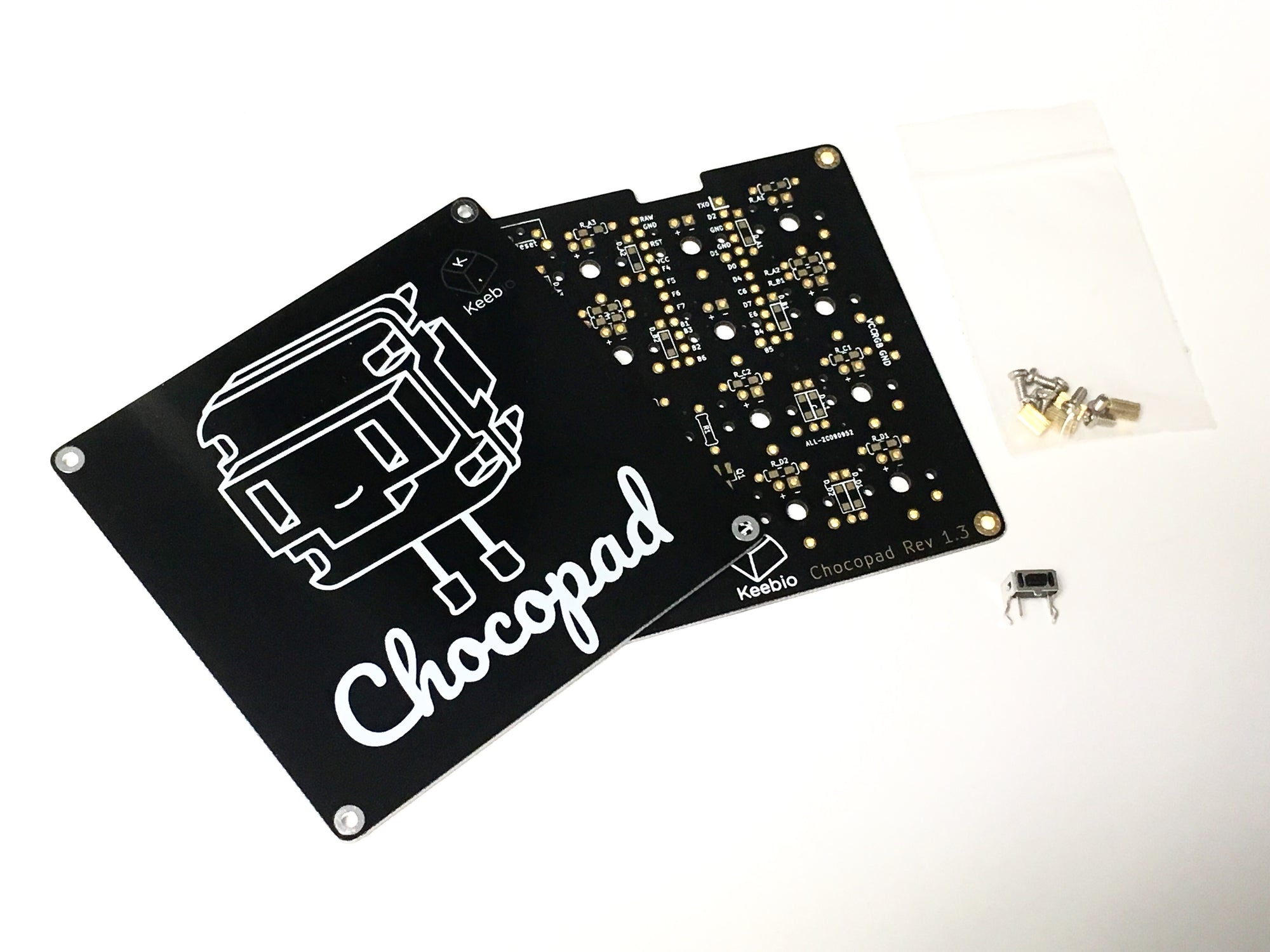

PCB Kit

  • 1 PCB
  • 1 Bottom plate
  • 8 4mm M2 screws and 4 5mm M2 standoffs
  • 1 reset switch
  • 16 1N4148
  • MOSFET and 4.7kΩ resistor for LED support

    Other parts needed

    Want some more Kailh low-profile fun? Checkout the Dilly, a 30% ortholinear keyboard that also uses the low-profile switches!

    Build Guide: Chocopad Build Guide


    Default Keymapping:

    The default keymapping that the board is pre-programmed with can be found here: Default Keymaps
