$19.99 $19.99 Sale • Save
Style

Top/Bottom Plates

Plates for the Nyquist are offered in these variants:

  • FR4
    • 1.6mm thick
  • Black Aluminum
    • 1.5mm thick

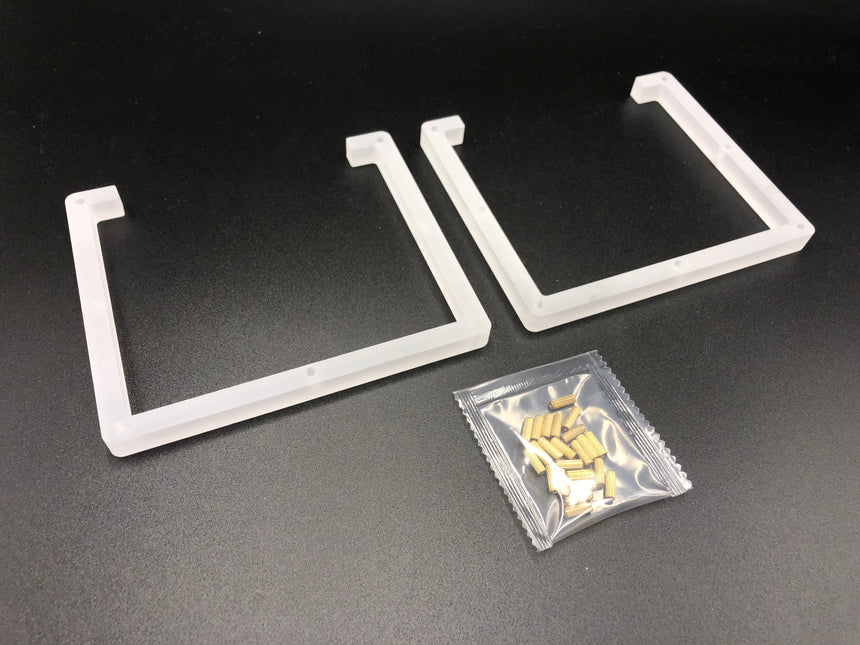

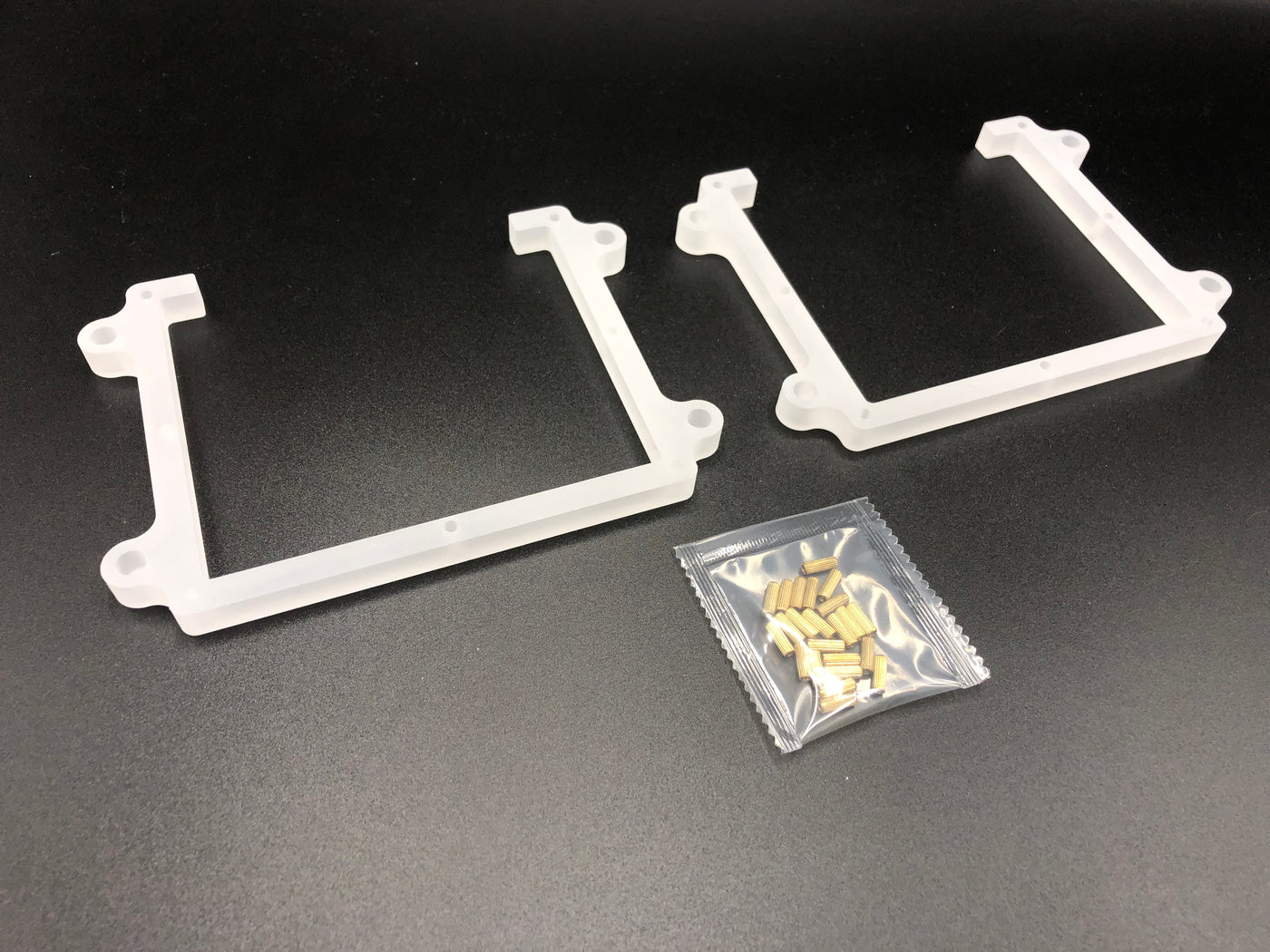

  • Acrylic
    • 3mm top and bottom layers

Aluminum Plates

  • 1.5mm thick
  • Bead-blasted and anodized black on both sides
  • B-Stock version: May have small marks or coloring issues

The plates come with the following:

  • 2 Switch plates
  • 2 Bottom plates
  • 32 M2 6mm screws
  • 16 M2 10mm standoffs

Switch plates are compatible with MX and Alps switches and support MX switch top removal.

Note that for the non-1u cutouts however, the switches won't have anything on the plate to grab on to, so you need to be careful with alignment when soldering the switch.

 Also, the plates currently in production have 2u cutout slots in the lower 2 corners, the all 1u plates are no longer in production.
