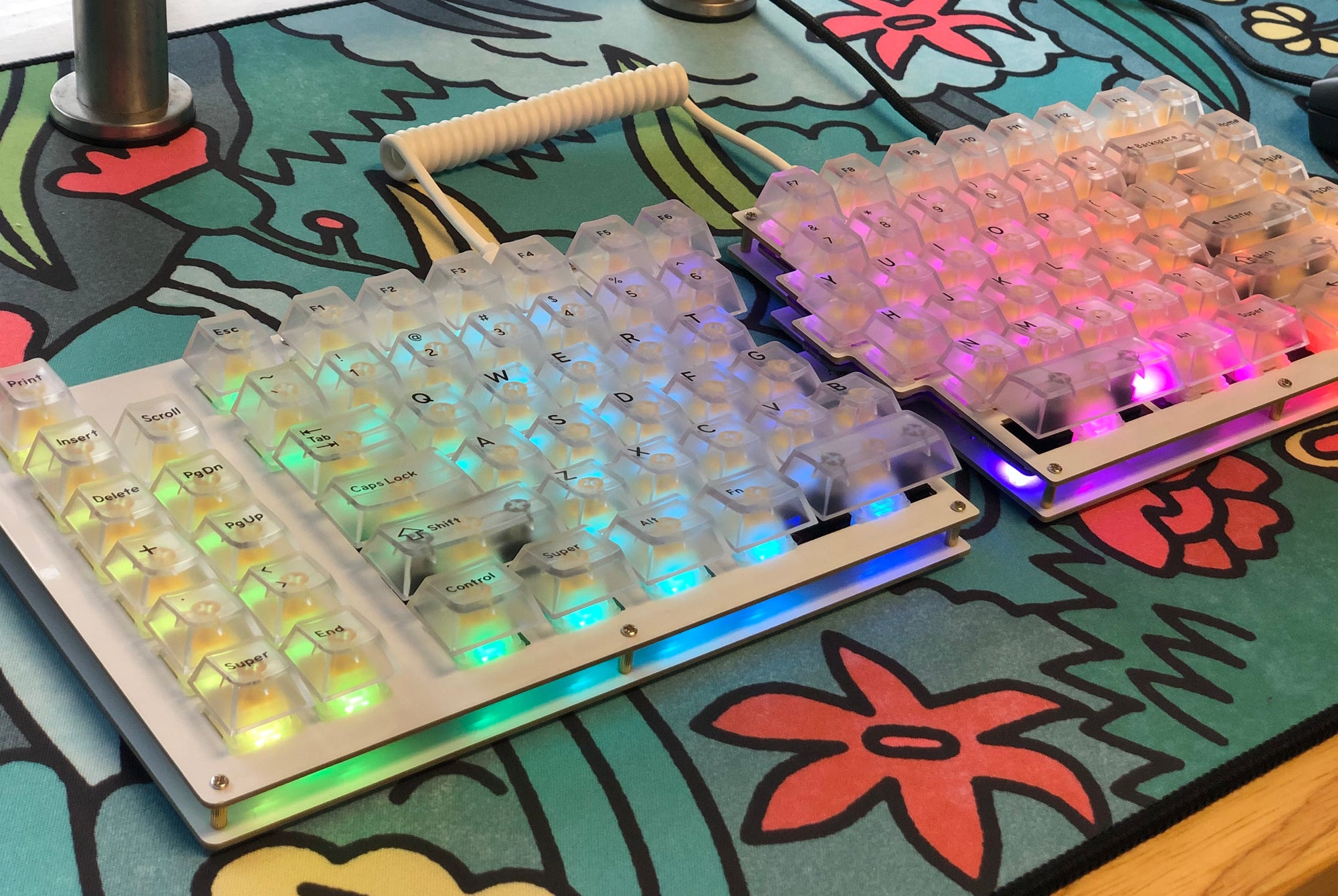

Fully built Sinc keyboard plugged into a computer.

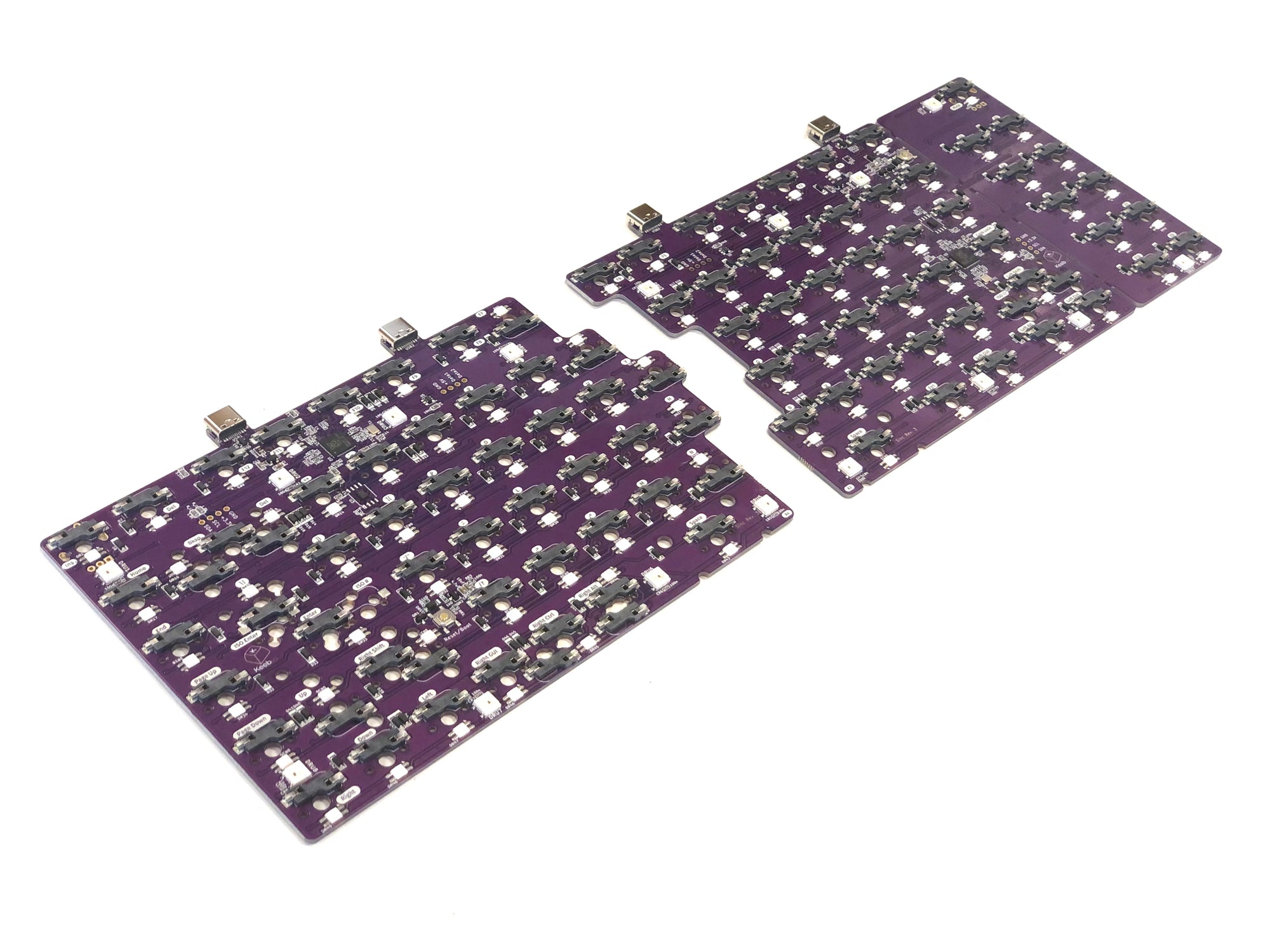

Bare Sinc PCB.

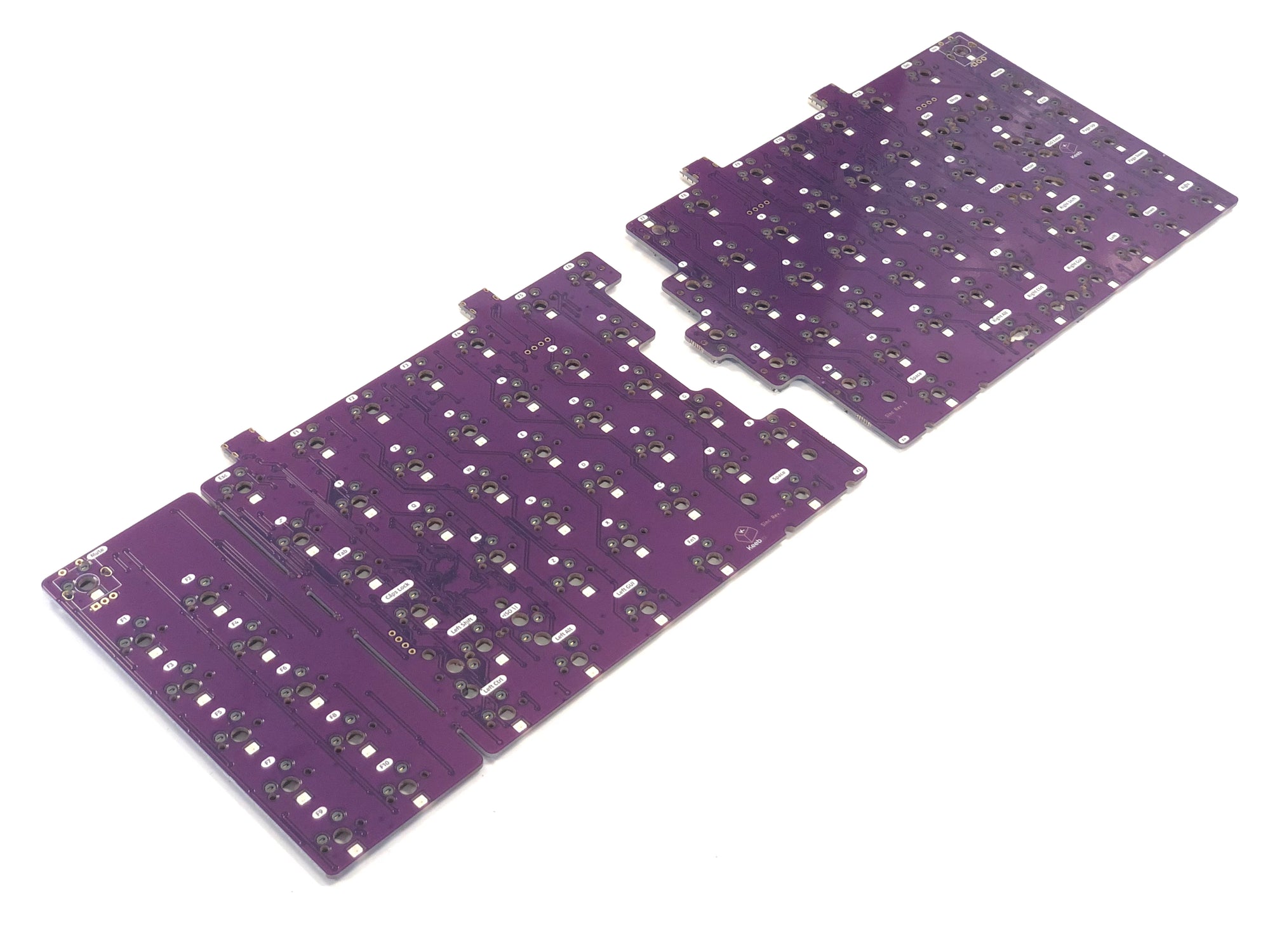

Underside of a bare Sinc PCB with all onboard components, including hotswap sockets and microcontroller.
Fully built Sinc keyboard with clear keycaps and a rainbow gradient on the per-key LEDs.

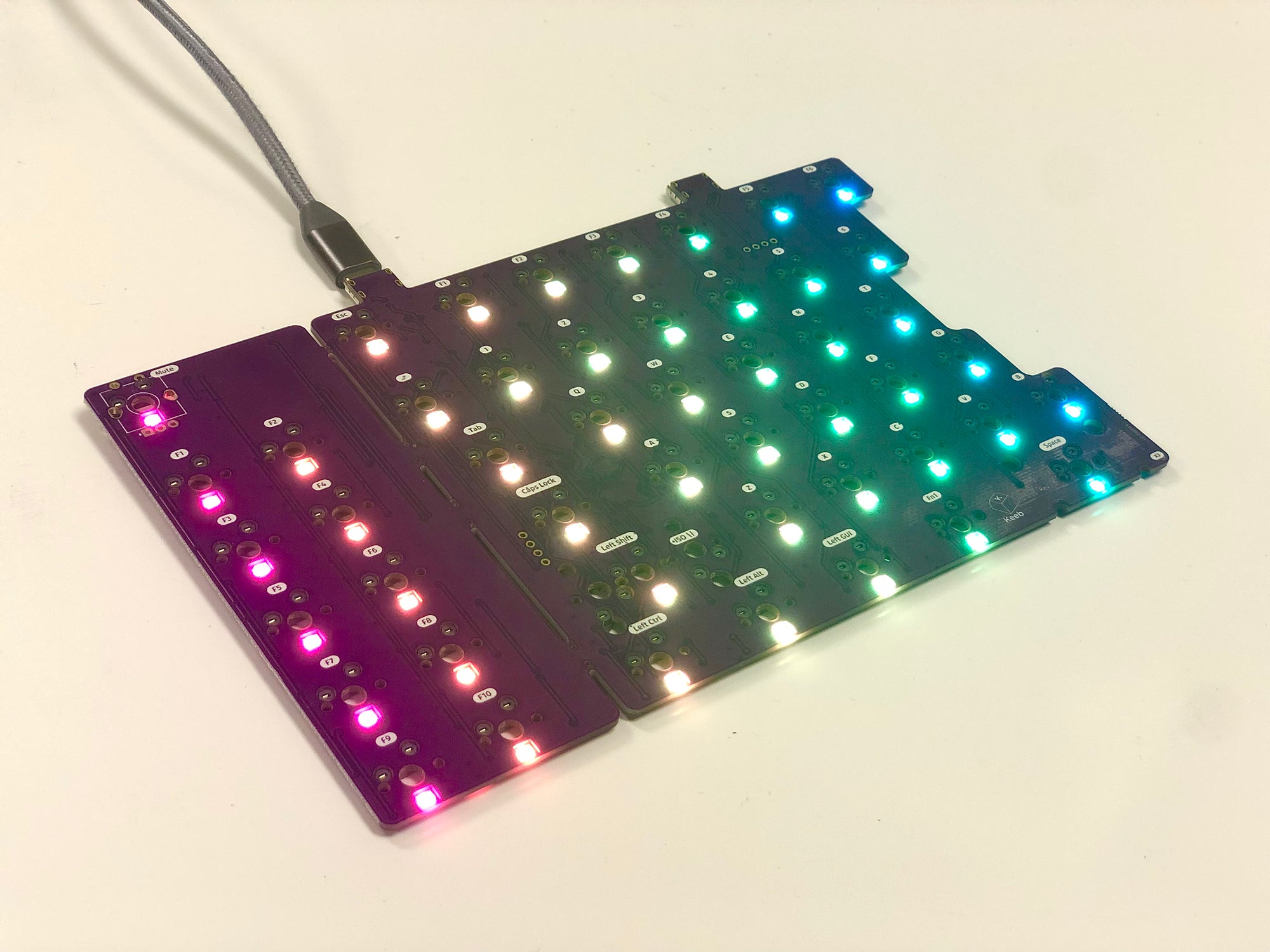

Left half of a bare Sinc PCB plugged in with a columnar gradient from pink to blue on the per-key LEDs.

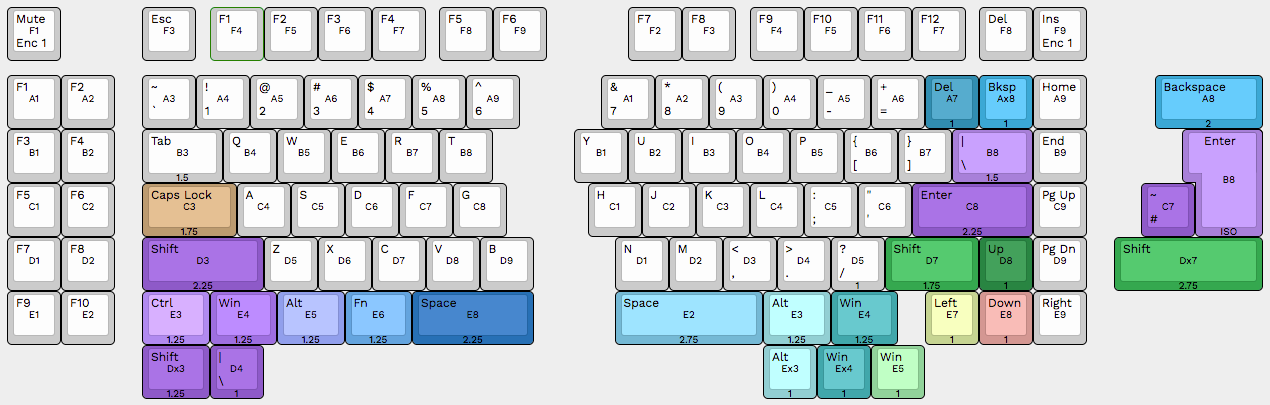

Layout option for the left half bottom row is 4x1.25u and 1x2.25u keys. Layout options for the right half bottom row are 1x2.75u and 6x1u keys or 1x2.75u, 2x1,25u, a small empty space, and 3x1u keys.
Fully built Sinc keyboard plugged into a computer.
Bare Sinc PCB.
Underside of a bare Sinc PCB with all onboard components, including hotswap sockets and microcontroller.
Fully built Sinc keyboard with clear keycaps and a rainbow gradient on the per-key LEDs.
Left half of a bare Sinc PCB plugged in with a columnar gradient from pink to blue on the per-key LEDs.
Layout option for the left half bottom row is 4x1.25u and 1x2.25u keys. Layout options for the right half bottom row are 1x2.75u and 6x1u keys or 1x2.75u, 2x1,25u, a small empty space, and 3x1u keys.

Sinc Rev. 3 PCB Kit - Split Staggered 75%/TKL Keyboard

$74.99 Sale • Save

90-Day Return Policy

2-Year Warranty

Split 75% keyboard with optional 2x5 macro section. Now featuring hotswap sockets, so just pop in your switches, and you are good to go!

Improvements with Rev. 3 PCBs: New features include per-key RGB, hotswap sockets, and more powerful on-board microcontroller!!

For additional left bottom row thumb layouts, see the Rev. 4 PCBs.

PCB Kits and Plate Kits are sold separately, so unless you are having your own case/plates made, you will need both a PCB kit and Plate kit (from the Case/Plates drop-down from above).

Build Guide

Sinc Hotswap Build Guide

ISO Enter Support Conversion: To convert the board to support ISO Enter, you'll need to desolder/resolder two of the hotswap sockets as shown below. See the build guide for additional details.

  • MX Hotswap sockets
  • Option for rotary encoders at top-left and top-right corners (non-hotswappable)
  • ANSI support - Enter area can be converted to support ISO Enter by relocating 2 hotswap sockets (We do provide a service option for this conversion), see Build Guide section below
  • Options for split ISO left shift, split backspace, and split right shift
  • Layouts supported: KLE link
  • Macro section on left half can optionally be broken off
  • In-switch RGB LEDs pre-installed
  • USB-C port
  • Compatible with MX-style switches only
  • QMK compatible, pre-flashed with VIA support for easy remapping of keys
  • Comes with left half PCB and right half PCB
  • RP2040 MCU integrated on-board
  • Per-key RGB LEDs for each switch
  • 8 RGB underglow LEDs on each half

Files available on GitHub

The default keymapping that the board is pre-programmed with can be found here: Default Keymaps
