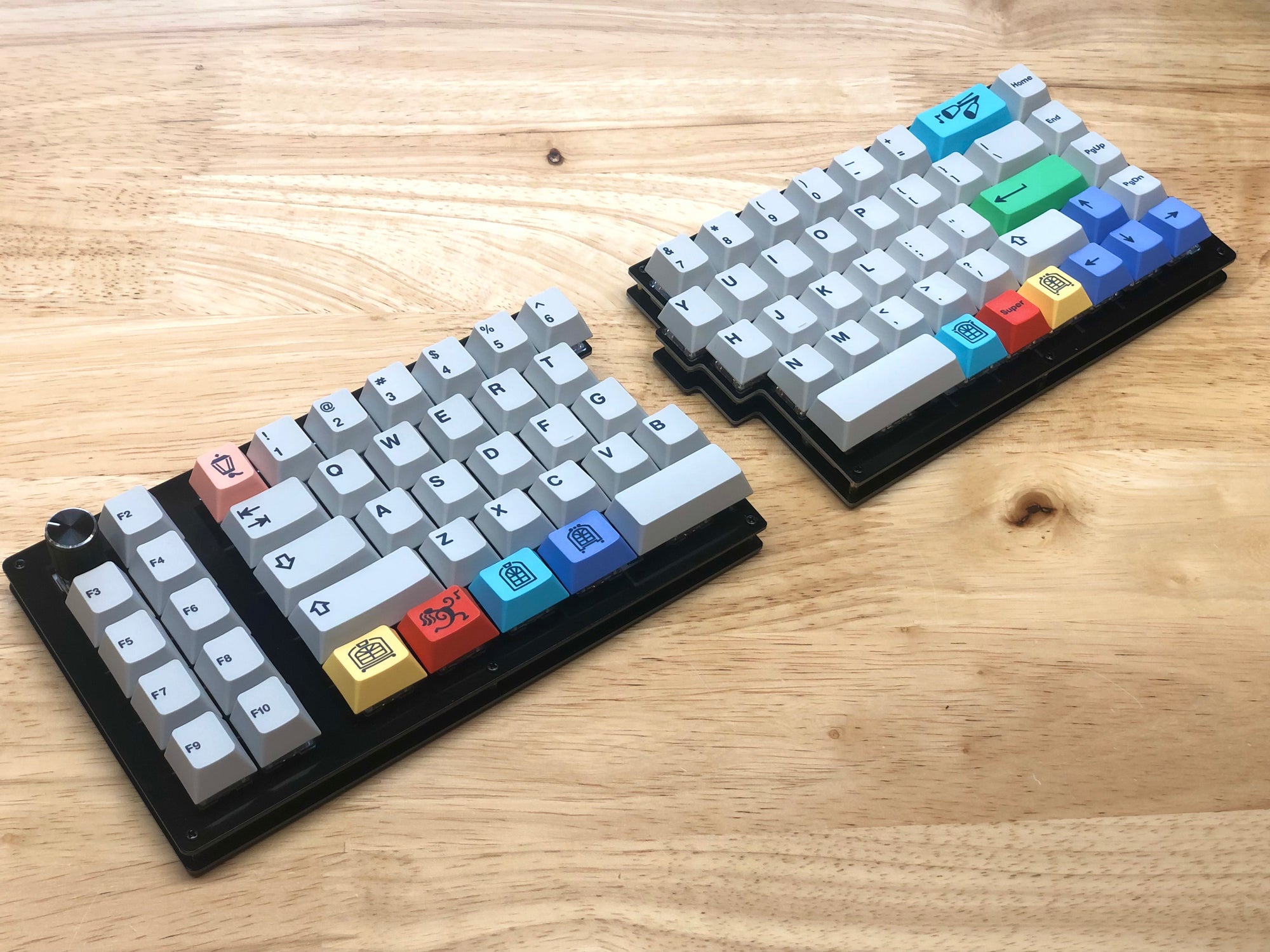

Fully built Quefrency keyboard with a rotary encoder in the top left corner and gray alphas and brightly colored modifier keycaps.

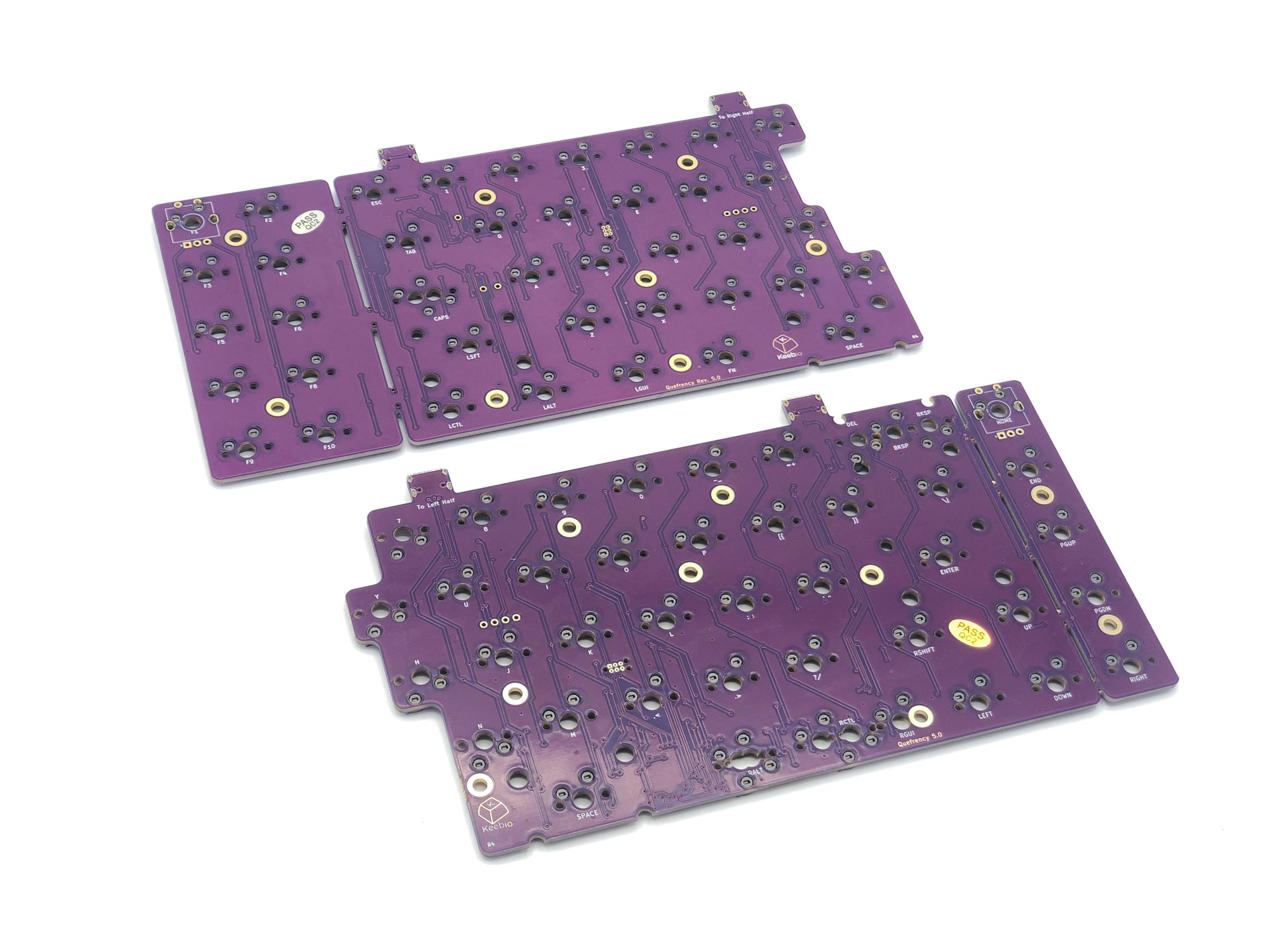

Bare quefrency PCB.

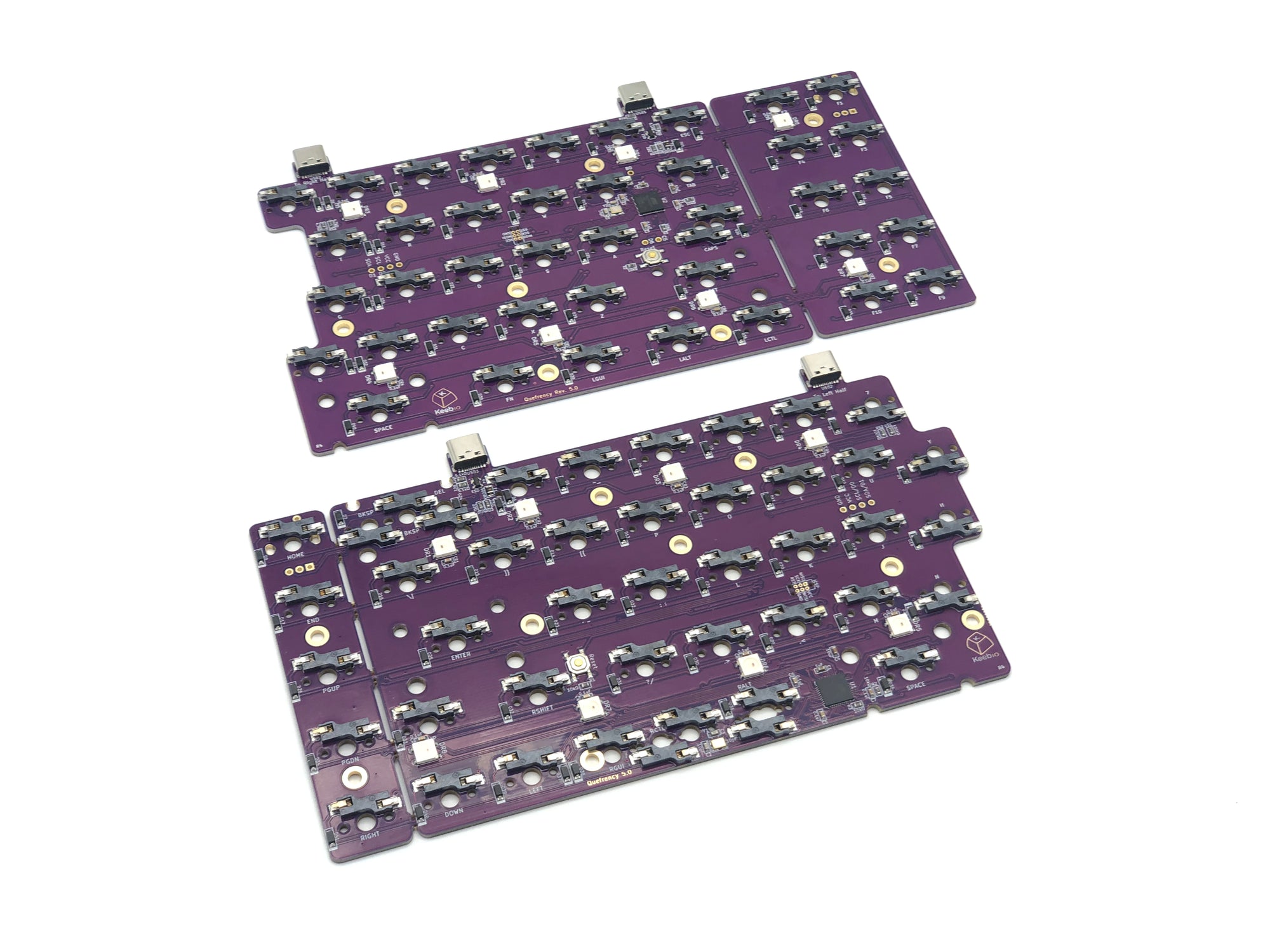

Underside of a bare Quefrency PCB with all onboard components, including hotswap sockets and microcontroller.

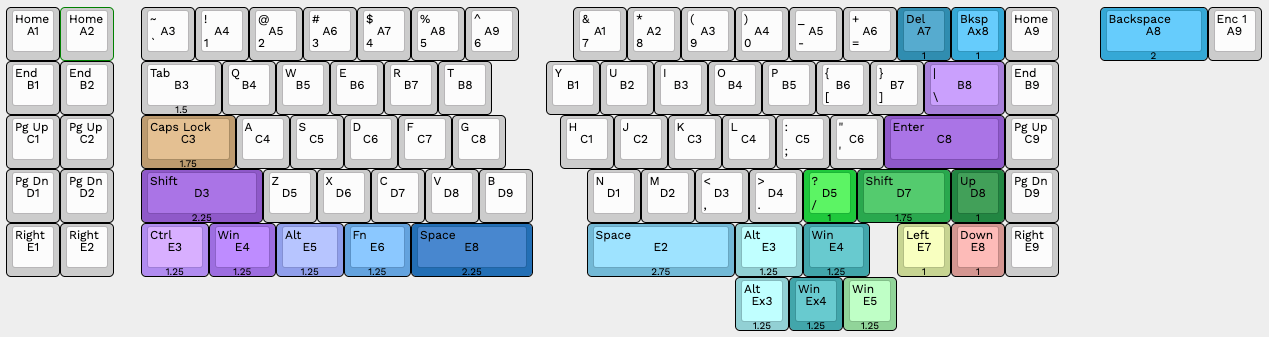

Layout requires split right shift but includes option for split or 2u backspace.

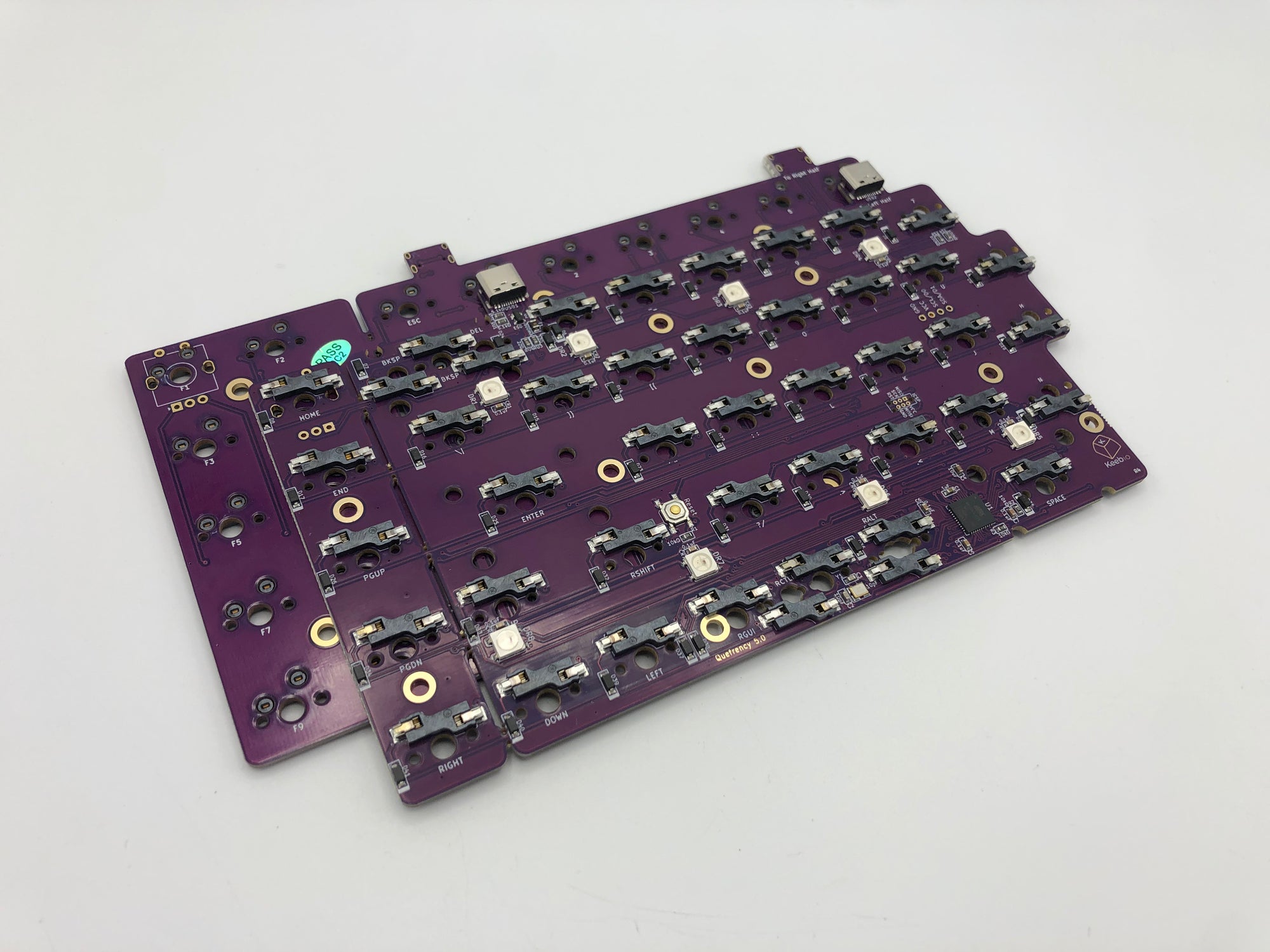

Bare Quefrency PCB halves stacked together.
Fully built Quefrency keyboard with a rotary encoder in the top left corner and gray alphas and brightly colored modifier keycaps.
Bare quefrency PCB.
Underside of a bare Quefrency PCB with all onboard components, including hotswap sockets and microcontroller.
Layout requires split right shift but includes option for split or 2u backspace.
Bare Quefrency PCB halves stacked together.

Quefrency Rev. 5 PCBs - Hotswap 65%/65XT Split Staggered Keyboard

$69.99 Sale • Save

90-Day Return Policy

2-Year Warranty

A 60%/65%/65XT split staggered keyboard, with 2x5 macro section option for the left half. Pronounced as keew-fren-see.

Don't want to build this keyboard yourself? No problem, check out the pre-built Quefrency keyboard.

    • Option for rotary encoders at top left and top right corners. Rotary encoders need to be soldered in (not hotswappable). It's recommended to add a 4mm foam piece or silicone bumper below the PCB where the encoder is and the bottom plate
    • ANSI support only
    • Layouts supported: Quefrency Rev. 5 KLE
    • Macro section on left half and right column on right half can optionally be broken off
    • USB-C ports for both connection to computer and between halves
    • Compatible with MX-style switches only
    • QMK compatible, pre-flashed with VIA support
    • Compatible with FR4 Plate Kits
    • Left PCB and Right PCB
    • One size fits all - Left PCB can have macro section broken off

    Quefrency 4/5 Hotswap Build Guide

    Files available on GitHub

    The default keymapping that the board is pre-programmed with can be found here: Default Keymaps
