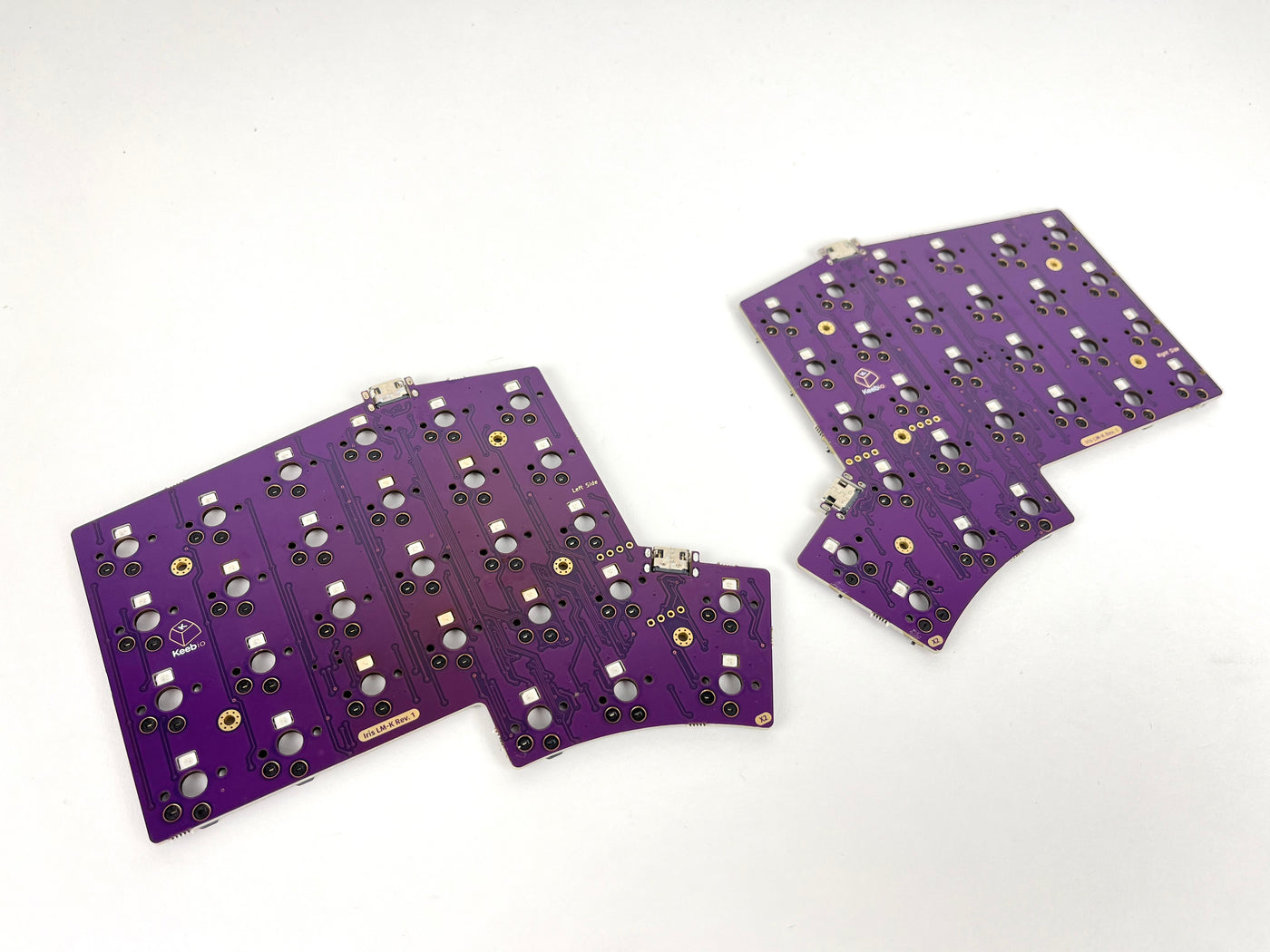

Iris LM-K PCB Kit - Kailh Choc V1 & V2
Iris LM-K PCB Kit - Kailh Choc V1 & V2
Iris LM-K PCB Kit - Kailh Choc V1 & V2
Iris LM-K PCB Kit - Kailh Choc V1 & V2

Iris LM-K PCB Kit - Kailh Choc V1 & V2

$89.99 $89.99 Sale • Save

90-Day Return Policy

2-Year Warranty

Kailh Choc V1 and V2 PCBs compatible with the Iris LM case.

For the full kit or keyboard see:

  • Pre-flashed with QMK Firmware and VIA configurator support
  • With VIA configurator, you can reprogram the board without needing to know how to setup QMK and/or QMK Toolbox
  • Demo video of VIA
  • Layout: Each half of the board is a 4x6 matrix with the same vertical stagger as the Ergodox and with 4 thumb keys.
  • On-board STM32G431 Microcontroller
  • Switch support: Kailh Choc Low-Profile V1 and V2 switch support only (2-pin version only for V2, 3-pin compatible if extra pin is clipped off)
  • Key spacing: 19.05mm vertical, 19.05mm horizontal (normal MX spacing)
  • USB-C ports for both connection to computer and in between halves
  • Kailh Choc Hotswap sockets pre-installed
  • 6 RGB underglow LEDs per half (12 total)
  • Per-key RGB LEDs
  • Left Half PCB
  • Right Half PCB

This keyboard uses the popular open-source QMK Firmware with VIA enabled out of the box to allow you to remap all the keys just the way you want them.

Plug your keyboard in, open up the VIA app, and easily change what each key does to get the most out of your keyboard with your customizations! More info on what you can do here: VIA Usage Guide
