KBO-5000 - Split Staggered 80% Keyboard


Sign up to be notified when this is restocked!

Split keyboard based off of the G80-5000 split keyboard. Features a macro left column and dedicated navigation cluster.

PCB Kits and Plate Kits are sold separately, so unless you are having your own case/plates made, you will need both a PCB kit and Plate kit.

Looking for an acrylic case to go along with the PCBs and plates? Visit P3D Store for their KBO-5000 Acrylic Case to really make your board shine!


  • Option for 1 rotary encoder at top left corner and 2 at the top right corner
  • ANSI/ISO support
  • Options for split backspace and split right shift

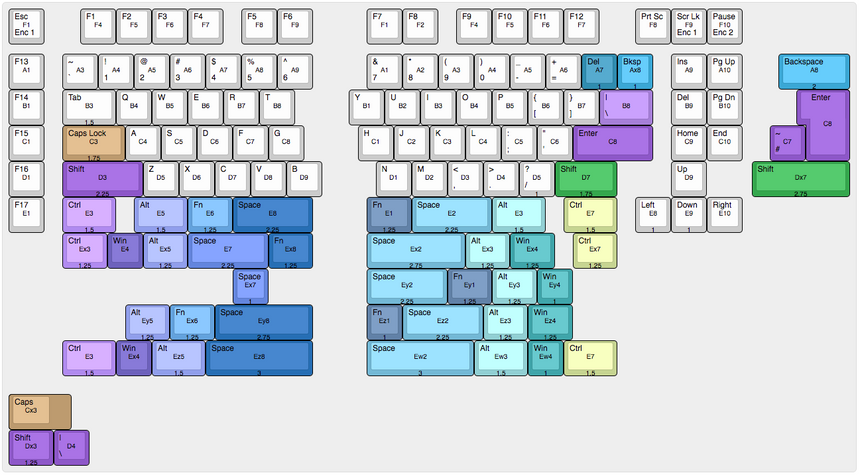

  • Layouts supported: KLE for KBO-5000
  • In-switch LED support (single-color 2-Pin LEDs, not RGB)
  • Separately controlled Caps Lock LED
  • USB-C ports for computer connection and connection between halves
  • Compatible with MX-style switches only
  • QMK compatible, pre-flashed with VIA support


  • Comes with left half PCB and right half PCB
  • ATmega32u4 integrated on-board
  • 8 RGB underglow LEDs on each half
  • Single-color, in-switch LED support (non-addressable)

Plate Kit

  • 1.6mm thick FR4
  • M2 6mm screws and 10mm standoffs
  • Complete set for left half and right half

Other Parts Needed for Build

Case Design Files

Files available on GitHub

Build Guide

Default Keymapping:

The default keymapping that the board is pre-programmed with can be found here: Default Keymaps
